Low pressure gage transducer PX243A-15BG5V omega $175

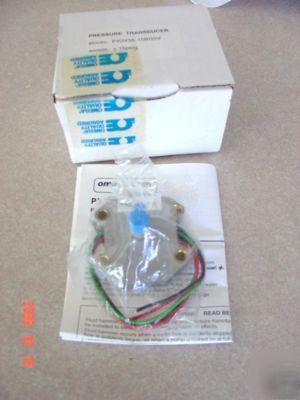

OMEGA LOW PRESSURE, BI-DIRECTIONAL +- 15psi PRESSURE AND VACUUM TRANSDUCER MODEL PX243A-15B65V.
Excitation: 8 Vdc regulated, 7 to 16 Vdc
Output: 1 to 6 Vdc @ 8 Vdc into 800 min
Linearity: 0.25% linearity and hysteresis combined
Zero Balance: 1.0 Vdc 0.05; 3.5 Vdc 0.05 for PX243
Compensated Temperature Range: -27 to 63 C (-17 to 145 F)
Gage Type: Solid state piezoresistive
Body Material: Stainless steel
Diaphragm Material: 2.5 mm (0.10") square silicon sensor chip with Buna-N O-ring
Media Compatibility: Limited to non-caustic media that will not attack stainless steel, silica, borosilicate glass or Buna-N seal
Pressure Port: 1 8-27 NPT male
