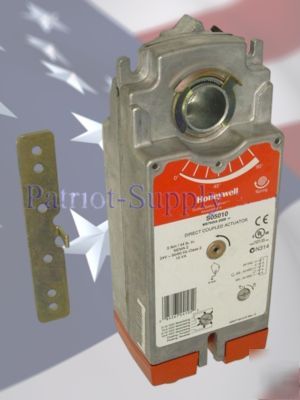

Honeywell MS7505A2008 (S05010) (0)2-10VDC actuator
(0)2-10Vdc,Floating Actuator - 44 lb-in, Spring Return ,
Direct Coupled, General Purpose, Spring Return Actuator
(0)2-10 Vdc (4-20 mA w/500 ohm resistor)
2-10 Vdc (max. output: 1.0 mA)
Maximum Stall Torque/Force (lb-in., lbf)
Maximum Stall Torque/Force (Nm, N)
Mechanically limited 5 degree increments
Timing, Maximum Spring Return (sec)
9.72 in high x 3.94 in wide x 2.95 in deep
247 mm high x 100 mm wide x 75 mm deep
Compatible Damper Shafts (in.)
3/8 to 1.06 round or 3/8 to 11/16 square
10 to 27 round or 10 to 18 square
Aluminum housing, Plenum rated plastic access cover
Enclosed screw terminal strip (22 to 14 AWG)
Maximum Noise Rating, Driving (dB(A) @ 1m)
Maximum Noise Rating, Holding (dB(A) @ 1m)
Mounting bracket, self-centering shaft adapter, 3mm crank
Integral 1/2 in. NPSM conduit connection.
