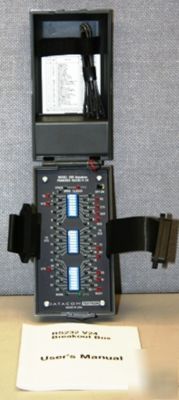

Datacom Textron Model 500 Databox RS232 V24 Input/Output Tester Breakout Box
Includes Copy of User s Manual!
The RS232 V24 Input/Output Tester has been designed and manufactured to provide you with a versatile tool for monitoring data signals. The I/O Tester is a pocket sized unit which allows access to all 25 RS232 signal lines. Its interface is transparent to data and does not alter information passing through it. Cables are required which allow the connections to both Data Terminal Equipment (DTE) and Data Communications Equipment (DCE).
* Lightweight: Weighs only 8 oz. and fits in a shirt pocket for convenience.
* Dual Cables: Female and male connectors on the interface cables eliminate the need to carry freestanding patch cables.
* Injected Molded Faceplate: Clear faceplate with description on the back eliminates inadvertent marring or scratching.
* Velcro Jumper Strap: Secures loose jumper wires.
* Battery Switch: On/off switch which allows on-line operation with no battery drain.
* Light Emitting Diodes: 14 Light Emitting Diodes (LEDs) allow the monitoring of DTE and DCE signals. LEDs are located on the appropriate DTE and DCE sides for ease in recognition.
* Color Coded Jumper Connectors: Single and daisy chain jumper connectors are color coded for ease in identification and use.
* Faceplate Pin Identification: Lines from LEDs and pins to switches simple operation.
* Connector Alignment: Connectors are properly aligned for normal interconnection with DTE and DCE equipment.
* Input Signal: 25V as per EIA S232-C specification: 2.5V min input for LED indication.
* Power Source: Two AAA size batteries (not included)
* Size: 5.55 H x 2.90 W x 1.45 D
* Case: Durable polypropylene injection molded case with an integral living hinged cover.
* Front Panel: Injection molded clear acrylic plastic.
