Robot MV96 & MV96P multivision pro color processor

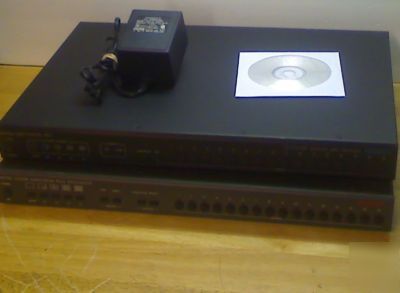

This is a lot of 2 used, working ROBOT Multivision processors. They are in good working and cosmetic condition. Recently removed from service as part of a departmental upgrade.
* ROBOT MV96 Color Multivision Plus Processor
* ROBOT MV96p Multivision Pro Processor
* 1 - AC adapter (can be used by either device)
* CD disc containing the User Manual for the MV96p
Video motion detection responds to alarm-related motion. Users gain alarm protection and superior documentation of critical events. Alarm-type video motion detection is built-in to the MV96p at a cost lower than comparable stand-alone detectors. Alarm reports, logs and counts conveniently displayed on-screen. Operation is easy, seamless and integrated.
Alarm detection parameters include object location, size, shape, tracking delay and trigger sensitivity to suit each camera's unique viewing environment and security need. Programmable 16H x 12V detection grid allows for superior alarm sensing while preventing false alarms.
Each camera's detection setting can be set for day and night conditions. The MV96p will automatically change settings when time of day requires alarm sensing requirements to change.
High-Resolution, True-to-Life Color Display
730 x 464 pixels to VCR. 16,000,000 colors. 256 shades of gray. See live or recorded events in high resolution and true-to-life color for detailed documentation, superior surveillance and easier identification.
Full screen, sequential camera switching, PIP, 2 x 2, 3 x 3 or 4 x 4 picture formats. Take a closer look at suspicious activity. View only critical areas. See all locations at one time. The MV96p allows you to select from viewing and playback options to suit your needs on a minute-to-minute basis.
Conduct closer analysis of critical events and provide improved documentation. Zoom in to see otherwise unidentifiable distant objects, such as license plates.
NTSC: 525 lines, 60 fields/second
PAL: 625 lines, 50 fields/second
16 looping: 1.0 V p-p composite, individually selectable 75 ohms or High-Z, BNC
2: 1.0 V p-p composite, 75 ohms, BNC
1.0 V p-p composite, 75 ohms, BNC or
1.0 V p-p S-Luma, 75 ohms, S-Video and
0.2867 V p-p Chroma, 75 ohms, S-Video
1.0 V p-p composite, 75 ohms, BNC and
512 x 464 to Display, pixels full screen
730 x 464 to VCR, pixels full screen
8-bit Luma, 256 shades of gray
24-bit Chroma, 16,000,000 colors on palette
16: programmable as Normally Open or Normally Closed
+5 to +15 VDC or TTL Active High
1: Normally Open or Closed contacts,
2A @ 30 VDC or 1A @ 125 VAC, resistive
16: Active High or Low TTL compatible (one per camera)
DB37S (includes DB37P mating connector)
Programmable 2 to 999 seconds, 4 seconds default
* Motion Detection Parameters
Each video channel has independent settings for day and night
Target Matrix: 16 horizontal x 12 vertical
Object Size: 81 combinations
Tracking Delay: 0 to 5 seconds
Alarm Enable: On, Off or And (requires concurrent contact closure)
Controls up to 16 multiplexers via RS-232, RJ11 In and Out
12 VDC; 18 watts, 2.1mm Pin Jack
1.75 in. H x 17 in. W x 12.25 in. D
40 to 104 F (5 to 40 C)
