New triplett pairmaster lan cable test set w/ 2 remotes
New Triplett Pairmaster Lan Cable Test Set w/ 2 Remotes

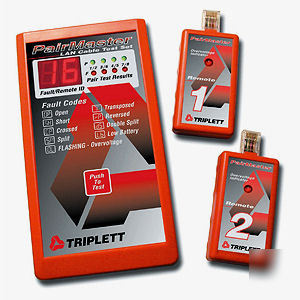

Image of New Triplett Pairmaster Lan Cable Test Set w/ 2 Remotes
The PairMaster gives the user the ability to verify three basic requirements for LAN cabling. First, the PairMaster will check the point to point wiring. These tests, commonly called wire-mapping, tell the user whether or not the individual conductors within the cable are wired correctly at both ends. Another test, NEXT (Near End Crosstalk), checks each pair of the cable for excessive A.C. coupling to the other pairs. The third major feature is the ability to identify which cable in the bundle is connected to the PairMaster. In a typical LAN installation, the individual workstations are connected to a central wiring hub. By connecting the Remote Identifiers to the workstation ends of the cables, the user can easily document the network topology from one location.
* New Flush Power Button reduces accidental turn-ons
* Tests Cat 5, 5E & Cat 6 Cables
* Identifies 1 of 16 Cables (with optional Remote Identifiers)
* Tests 1/2, 3/6, 4/5, 7/8 Cable Pairs
* 2 - 7 segment LEDs display Fault Codes and Remote ID numbers
* Input Protection up to 56VDC
* Overvoltage Indication on PairMaster and Remote Identifiers
* Auto Power Off at end of test
* 4 PASS LEDs (Green), 4 FAIL LEDs (Red)
* EIA / TIA 568 configuration for UTP Ethernet and Token Ring LAN Cables
* 2 Year Warranty on PairMaster
* 1 Year Warranty on Remote Identifiers
