New flexbar latheguard guard shield # 13061 (D2)
Flexbar Latheguard Guard Shield 13061 NEW!!!
Prevent Accidents With LATHEGUARD

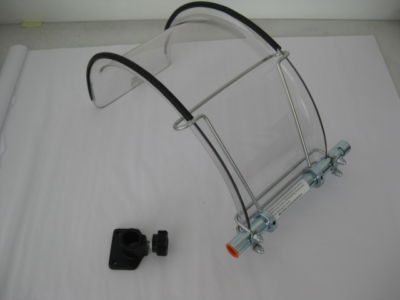

Clear LEXAN, Semi-Circular Wrap-a-round Guards
* Heavy Duty Cast Mounting bracket supplied.
* Heavy Duty Chrome-plated extension tube and hardware.
* Ready to mount; all you do is affix mounting bracket with two screws.
* Back of shield is reinforced with plated wire-form housing.
* Locks in swing away or functional positions.
* Accepts 3 or 4-Jaw Chucks.
Information and Specifications
HINTS, FOR SELECTING THE CORRECT LATHEGUARD!
1. The Chuck Diameter being used on your Lathe makes for a good formula.
2. Utilize Dimension "A" and other dimensions given in chart shown below.
3. On Lathes with center heights of 7 inches or more there is a significant variation in the diameter of a 3-Jaw as against a 4-Jaw Chuck. It may be necessary to install the next larger Latheguard to accomodate for the 4-Jaw Chuck. Keeping a double bracket (No. 13071) on the Lathe makes it possible to switch your latheguard from small to larger size and vice versa, in one minute.
NEITHER RAZOR-SHARP CHIPS NOR BROKEN TOOLS BITS WILL PENETRATE THE LEXAN SHIELD
Model No. 13061 suggested Lathe size is 12 to 16 for use with Chucks up to 12" Diameters.
