New - bimba flat-1 air cylinder fod-310.5-HMT4
New - Bimba Flat-1 Air Cylinder FOD-310.5-HMT4
* This is also a Hardinge p/n MC000291704

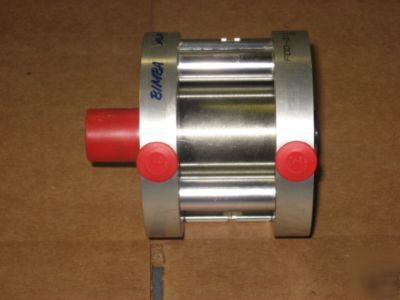

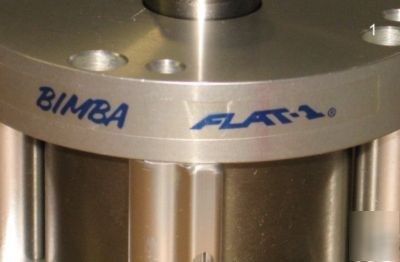

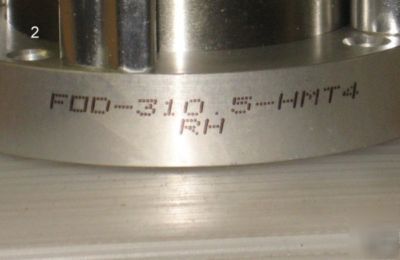

* Pictures #1 & #2 show the tags on the cylinder. The tags have the following on them: Bimba; Flat-1; FOD-310.5-HMT4 and RH

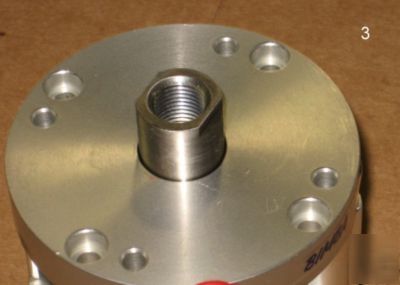

* Picture #3 shows the top fitting. It is high and is .753 ID and .448 OD

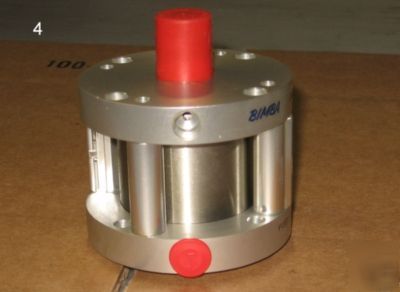

* Picture #4 shows the fittings (red caps). The fittings are NPT. The piece that the fittings are is high and is 3 diameter
* Picture #5 & #3 show the mounting holes. There are four mounting holes and they are .210 diameter and .341 diameter on top

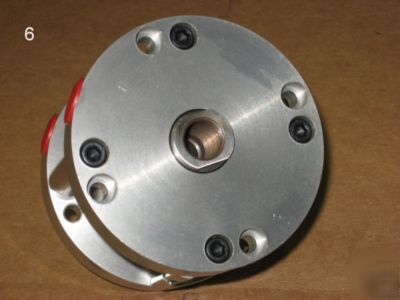

* The bottom fitting (picture #6) is .753 ID and .434 ID
* Overall the air cylinder is 3 high and 3 diameter
