Weeke bp-100 point-to-point cnc machining center

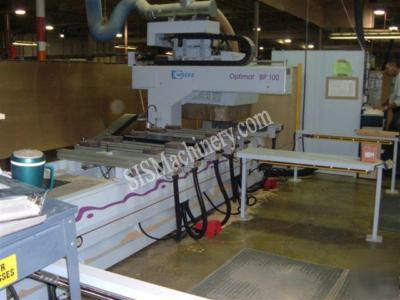

Used Weeeke Model BP-100 Optimat CNC Machining Center (1999)
MORE pictures & info: http:// /CGI/machines.cgi?action=view&SISID=BP_10_1963
Number of vertical drilling spindles 19
Vertical drilling spindle power 1.5 kW
Number of horizontal drilling spindles 4
Horizontal drilling spindle power 1.5 kW
(power constant from 9000 rpm to 18000 rpm) 5.0 kW
X-axis grooving saw power 1.5 kW
Saw blade diameter required 100 mm
ETP toolholder with collet 2 each
Number of panel support benches 6
Number of panel feeding rails 6
Vacuum pump capacity 100 M3/hr
Length of machine without switch cabinet 6300 mm
Working length 2800 mm (110-7/32")
Working width - support bench width 1000 mm (39-3/8")
Max. panel thickness for proper tool clearance 60 mm (2-3/8")
Max. drilling depth for through holes 38 mm (1-15/32")
Electrical connection: 210, 240 or 480 volt, 3-phase, 60 Hz.
240 volt requires 60-amp service/480 volt requires 30-amp service
Voltage supplied must not fluctuate in excess of +/- 5% of its stated value.
Dust extraction: 200-mm diameter connection, 1300 cfm.
Compressed air connection: 1/2"
Air pressure requirements: 6 bar/95 PSI
Ambient temperature operating range: 50? F - 100? F
Weeke's BP-100 is a truly industrial machine designed primarily for point-to-point boring and machining of flat components without special workpiece fixtures.
Weeke is uncompromising with high quality standards. They are an ISO 9001 certified machine tool builder. Weeke uses world class suppliers for critical items not made in house. In fact, most of the externally sourced components are sold and serviced on a worldwide basis and, of course, here in the U.S. Insistence on quality and highly industrialized components results in a very stable process-one that requires a minimum of inspection, preventive maintenance, or repair.
The BP-100 is constructed on a steel frame, with heavy steel ribs (gusset plates) welded to the frame inside the base to insure stability. The design and substantial mass provide a solid vibration-free platform for the machining head. The head rides on THK linear motion guides. In fact, the X-, Y-, and Z-axes are all supported on THK machine tool guides. THK guides were designed to produce straight line tracking at high travel rates, with outstanding stability-both in the radial and side directions. The X-axis is driven by a zero-backlash, pre-loaded, helically ground rack and pinion gear system. High precision ball screws drive the Y- and Z-axes. Indramat solid state drives and brushless AC servo motors are utilized to move the axes.
The BP-100 features a Windows-based control with intuitive programming software.
Vertical Boring with 19 Spindles
Eight (8) spindles are aligned in the X-axis and are typically utilized for row holes. There are also ten (10) spindles aligned in the Y-axis. All spindles are on 32-mm center distances. The spindles utilize standard boring bits, 70 mm long, up to 20 mm in diameter, with 10-mm diameter smooth shanks. One (1) special spindle, for large drills up to 35 mm in diameter, is offset in the X-axis. A 1.5 kW motor drives the vertical-boring gearbox.
Horizontal Boring with Four Individually Selectable Spindles
The horizontal-boring block has four (4) spindles. The drill spindles are positioned to the left, right, front, and back of the machining head. (0?, 90?, 180? and 270?).
A solid state frequency inverter manufactured by KEB is utilized to power the router. The inverter output is programmable through the control with constant power from 9000 rpm to 18000 rpm. Spindle rotation, RH or LH, is also programmable. The inverter has a 13.0 KVA power rating.
Dust extraction is provided by a central dust collection manifold, with automatic dampers to each of the machining spindles to maximize dust extraction efficiency. The connection port at the back of the manifold is 200-mm diameter. The horizontal-boring unit has no provision for dust collection.
Six (6) panel support benches are supplied with the machine and have two (2) vacuum pods each. The support benches have a control button conveniently located on the front to disengage the pneumatic brakes for X-axis adjustment. The vacuum pods are matrix type, 145 mm x 145 mm. With the vacuum seal configured for the narrowest part, it is possible for the pods to hold 50-mm wide strips. With six (6) support benches and both left and right zero stops, it is possible to load the machine with two (2) workpieces at a time.
Panel feeding rails are attached to one side of each support bench (can be easily moved to either side). The rails move upward to provide a smooth surface for loading and unloading. The rails retract downward to set the panels on the vacuum pods.
A powerful vacuum pump with 100 cubic meters/hour capacity has enough reserve suction for the most demanding jobs.
A perimeter fence helps prevent accidental intrusion from the ends or back of the machine.
A safety photocell barrier will assist in stopping the machine if the operator enters the working area while the machining head is in operation. The photocell barrier is divided into two (2) working zones so you may load or unload parts at one end of the machine while the machine continues to work on the opposite end.
Industrial Personal Computer (IPC) for operator interface
the IPC is a Pentium 100 Mhz Windows based machine
the IPC is connected to a NUM programmable logic control for accurate and reliable control of all machine functions
high resolution color graphics (VGA) with 14" color monitor
full function industrial keyboard
bar code reader interface and software included
simultaneous three-axis linear control
EtherNET interface for local area network (connection to office PCs)
fully compatible and integrated with Holzma Cut-Rite Plus software
report generation software included
post processor for Pattern Systems Drill Mate included
RS-232 serial interface for simple PC connection
Packing and loading onto truck included in price
