Picotest G5100A waveform generator

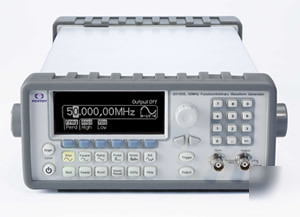

Photobucket G5100A 50MHz Function / Arbitrary Waveform Generator can create stable, precise, clean and low distortion sine waves by using DDS (Direct Digital Synthesis) Technology. With fast rise and fall times up to 25 MHz for square waves and 200KHz for linear ramp waves , the G5100A also can reach users demand on waveforms
G5100A can generate variable-edge-time pulses up to 10MHz. With variable period, pulse width and amplitude the G5100A is perfectly suited to applications requiring a flexible pulse signal
G5100A can generate complex custom waveforms. With 14-bit resolution, and 125 MSa/s sampling rate, the G5100A offers users the flexibility to create waveforms. It also allows users to store up to 5 waveforms, 4 (4 x 256K Points) in nonvolatile memory and 1 in volatile memory.
Picotest Waveform Editor Software Wavepatt allows users to create, edit and download complex waveforms. In addition, users can retrieve waveforms from Agilent Oscilloscope MSO 8104 by using the Wavepatt
In graph mode, user can easily visual verify the signal settings. Also, user can always see the selected function on the upper left corner of display.
Data Transmission via Pattern Out
User can use Wavepatt to creat and store 16-bit data in G5100A. The data can be transmited via Pattern Out from G5100A rear panel as source for control.
The front-panel operation of G5100A is simple and user friendly. Users can enter all functions with a single key or two, and use knob or numeric keypad to adjust frequency, amplitude, offset and other parameters. Otherwise, users can also directly input voltage values in Vpp, Vrms, dBm or high & low levels. Timing parameters can be entered in Hertz (Hz) or second.
Users can easily use the following functions.
* Internal modulations of AM, FM, PM (PSK), FSK & PWM for waveform adjustment.
* Built-in linear and logarithmic sweeps from 1ms to 500 s.
* The burst mode has a selectable number of cycles per period of time.
* Using remote control via USB, LAN or Opt. GPIB interface.
* The programmability by SCPI commands under the remote control connection.
* Precise phase adjustments and calibrations can be done from the front panel or via a PC.
Support External Frequency Output
