> New 42" tan itz vertical saw, 36" x 37" tbl, 9800 fpm

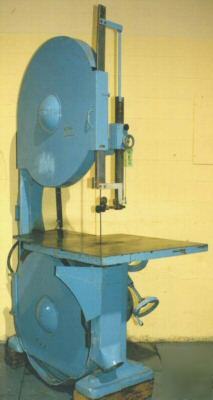

New 42" tan itz vertical saw, 36" x 37" tbl, 9800 fpm
SERIAL ....................................... 73291
MODEL ........................................ RHE
NEW IN ....................................... 1973
DEPTH OF THROAT .............................. 41-1/2"
MAXIMUM UNDER GUIDES ......................... 21"
AREA OF TABLE ................................ 36" X 37"
AREA OF AUXILIARY TABLE ...................... 19" X 16"
TABLE TILTS 45 DEGREES RIGHT 5 DEGREES LEFT... YES
DIAMETER OF WHEELS ........................... 42"
UPPER WHEEL ADJUSTMENT ....................... 7"
BLADE LENGTH MINIMUM ......................... 20'-10"
BLADE LENGTH MAXIMUM ......................... 22"
BLADE WIDTH .................................. 1/8" TO 2" MAX
BLADE SPEEDS ................................. 9800 FPM
HYDRAULIC BRAKE .............................. YES
MOTOR ........................................ 15 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
