Koch industrial conveyor washer & drying oven 300F

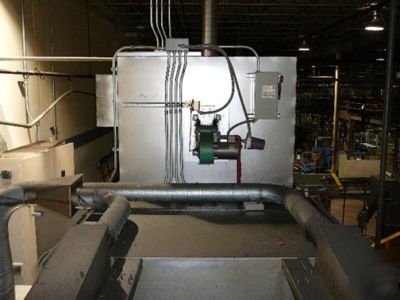

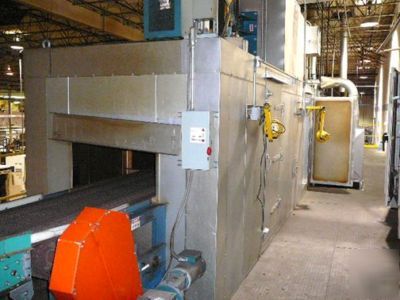

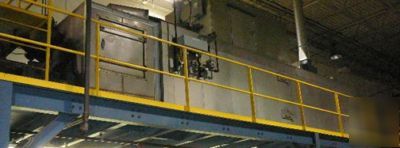

George Koch & Sons Conveyor Washer Dry Off System
Designed to wash and dry aluminum wheel rims.
Accepts wheels 17.5 -24.5 Dia. x 7.2 -11.2 High, Maximum weight of 40 lbs. each
Processes 270 wheels per hour.
Missing the control panel. $1000 loading fee.
See details below. Call with questions. (***)-875-3712
Missing the control panel for the whole system.
There will be a $1000 loading fee.
Manufacturer: George Koch & Sons, LLC
Serial: JOB 914-5309 (914-5300)
Size O.D.: Approx. 9ft W x 60ft L x 11.167ft H
2,000,000 BTU/Hr Max. Immersion tube gas burner
Top and bottom directed spray pattern
1 x1 Stainless Steel Flat Wire Belt
Parts are loaded onto a 4 foot open load area and pass through a 12 foot long hot water spray rinse section
and then exit to a 5 foot long open unload area.
5 foot long stainless steel blow off system accepts parts from washer.
Air is directed to the parts from both top and bottom turbo nozzles.
500,000 BTU/Hr Max. Burner with gas train
12,040 CFM @ 3.5 S.P. Recirculation Blower
Parts enter a 25 foot long heated section with upper and lower supply ducts.
Parts exit onto a 3 foot long unload section.
The complete system originally had one control panel for the three units in the system.
In the disassembly and moving process the control panel disappeared...it didn't make it on the truck.
Please contact George Koch & Sons Llc for pricing on one control panel or separate control panels for
Call with questions or to schedule an inspection. (***)-875-3712
Item FOB Grand rapids, Michigan
Please look up Furnace Brokers, Inc. online to see our full inventory.
