High speed hurco cnc vertical machining center

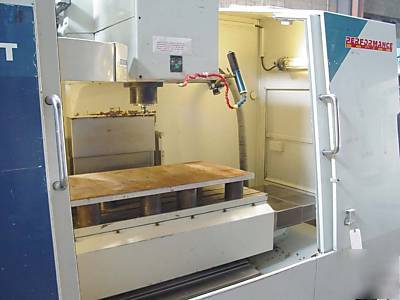

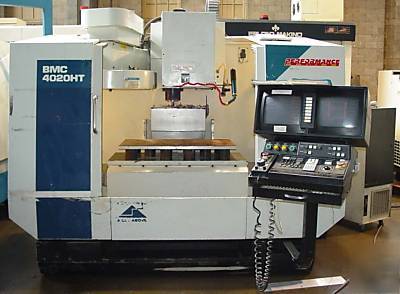

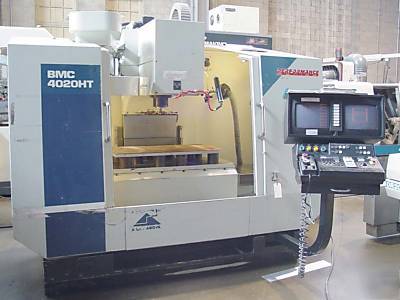

HURCO BMC4020HT/M CNC VERTICAL MACHINING CENTER
Model BMC4020HT/M, S/N 420M91006127CC, New 1998Stock# K13214

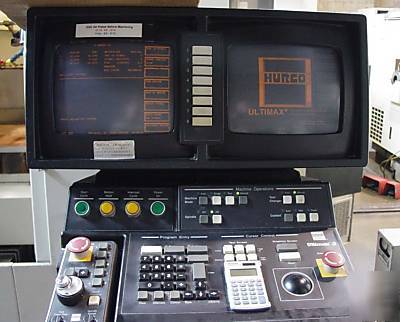

EQUIPPED WITH: Ultimax III CNC Control with Dual 12" CRT's, Hurco Ultimax

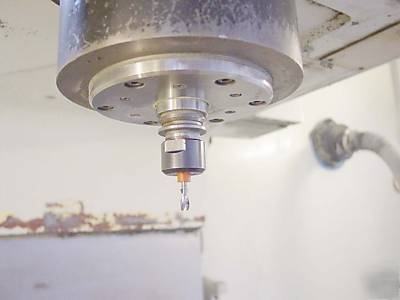

Conversational Programming, High Speed 40,000 RPM Ibag Hig Frequency
Variable Speed Spindle, DXF File Compatible for Cad/Cam Programmimg,

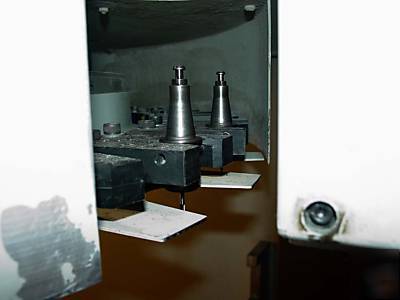

Background Edit, Dual RS-232 Ports, 3-1/2" Floppy Drive, 24 Station
Automatic Tool Changer, Auto Lube System, Work Light, Full Enclosure,

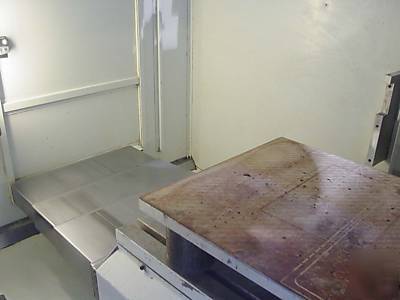

,Spindle Chiller, Coolant System.CATALOGUE SPECIFICATIONS:Table Size........................................ 48" x 20"
Longitudinal Travel (X-Axis)...................... 40"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 24
Table Load Capacity............................... 1500 Lbs
Maximum Clearance Table Top to Spindle Nose....... 30"
Rapid Traverse X & Y Axis......................... 787 IPM
Rapid Traverse Z Axis............................. 530 IPM
Tool Storage Capacity............................. 24
Spindle Speeds Range.............................. 10000-40000 RPM
Spindle Taper..................................... SKI-20
Electrics......................................... 240/460/3/60
Approximate Machine Dimensions.................... 136" x 96"
Approximate Machine Height (Head Up).............. 100"
Approximate Machine Weight........................ 13,000 LBS
CONDITION: From a High Tech Electronics Manufacturer ! Appears to be in
