Tektronix 7D15 universal counter / timer - 225 mhz

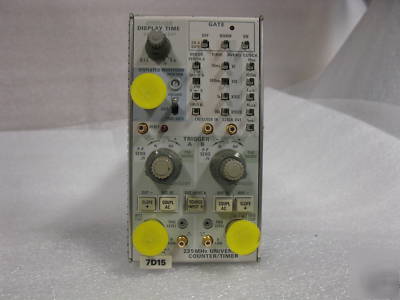

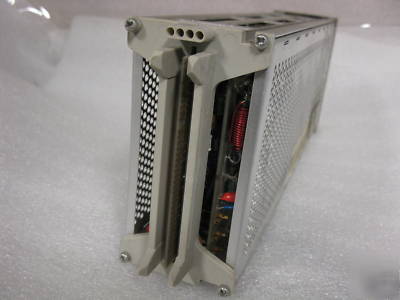

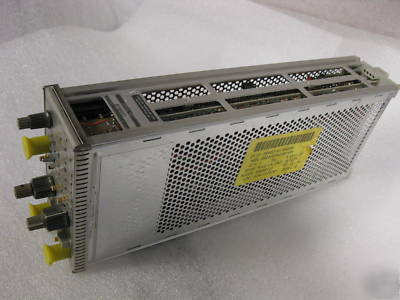

TEKTRONIX 7D15 UNIVERSAL COUNTER / TIMER PLUG-IN
The Tektronix 7D15 is a used Digital Multimeter Plug-In that has a DC-225 MHz range. The 7D15 is designed for use in all 7000-Series oscilloscope mainframes having CRT readout.
* Frequency Mode: DC to 225MHz, resolution is 0.1Hz
* Period and Multi-Period Mode: 10 ns to 10E+05 s with selected averaging of 1 to 1000 events in decade steps, 10 ps max resolution
* Time Interval (TI) and TI Average Mode: 6 ns to 10 s with selected averaging times of 1 to 1000 in decade steps, 0.1 ns resolution
* Frequency Ratio, CH B/Ext. Clock: 10E-07 to 10E+04
* Manual Stop Watch: 0 to 10E+05 s
* Totalize, CH B: 0 to 10E+08 counts
The 7D15 can be completely controlled by the oscilloscope's delayed gate. Arming inputs are provided for each channel.
