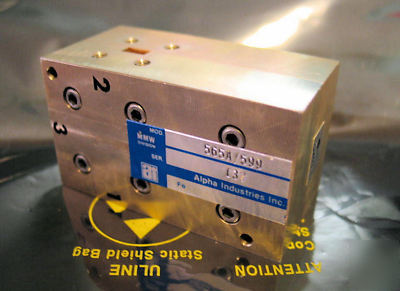

New trg alpha 565A cross guide directional couplers
Crossguide Directional Coupler
565 series cross guide couplers are The units consist of two waveguides at right angles to each other, joined by small coupling slots whose size, location, and orientation determine the coupling and directivity of the unit. The 565 series couplers are unidirectional because one arm is internally terminated with a matched load.
The 565 series cross guide directional couplers provide an efficient means for sampling power or injecting a signal into a waveguide transmission line.
