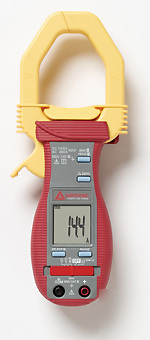

New amprobe acdc-100 trms ac/dc clamp on meter
Where accuracy, quality, and newest technology meet. The ACDC-100 offers superior AC/DC measurement capabilities, highest product quality and enhanced ergonomics with Red, Rubber, RibsTM design. The TRMS version addresses needs of professionals who rely on performance and reliability.
* MAX capture function for inrush current measurements (30 mS response)
* Accommodates conductors up to 2.00 (50mm) in diameter
* "Third hand" - test probe holder
* Rubber over-molded case with built-in probes storage
* Carrying case, test leads, batteries (installed) and user manual included
DC Current: 400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800A **
AC Current: 400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600A, 40 to 100Hz **
AC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4V to 400V ranges , 50 to 500 Hz**
DC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4V to 400V ranges **
Resistance: 400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges **
Capacitance: 500.0nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)
