> New lutron fdb-T432-120-1-s compact dimming ballast

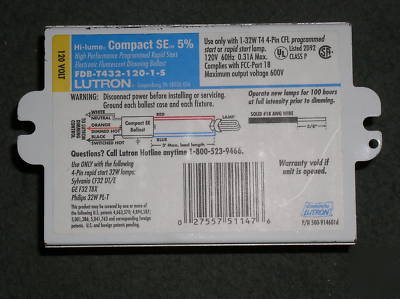

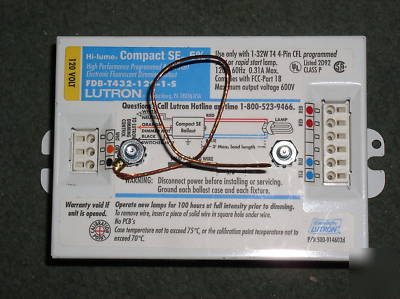

New lutron fdb-T432-120-1-s compact dimming ballast
Compact SE Compact Fluorescent Full Range
100% to 5% Level Output, 100% to 22% Perceived Level
UL/CSA, ANSI C82.11 High Frequency Ballast Standard, FCC Part 18 EMI/RFI emissions, ANSI C62.41 Category A surge protection standards up to and including 4kV
* Electronic Dimming Ballasts
* Ballasts strike lamps at any light level without first flashing to full light; provide smooth, quiet, flicker-free dimming when used with rapid-start fluorescent lamps.
* Better than Class A sound rating; Class P thermally protected. All wiring from dimming control to ballast is Class I and may be combined in the same conduit. Ballasts are protected against damage caused by miswiring of control wire input. UL Listed and CSA Certified.
* Min. starting temp.:50 DegreeF (10 DegreeC)
* Total harmonic distortion: Less Than 10% at full light output; less when dimmed
* Full dimming range: 100% to 5% light level output
* Note: Do not mix magnetic dimming ballasts with electronic ballasts on the same control.
Electronic Dimming Ballast, Compact SE Compact Fluorescent Full Range, Number of Lamps 1, Voltage 120, Rapid Start, Amps AC 0.31, Input Watts 32, Min. Starting Temp. 50 F, Ballast Factor Greater Than 0.95, Power Factor Greater Than 0.95, Total Harmonic Distortion Less Than 10 %, Dimming Range 100% to 5% Level Output, 100% to 22% Perceived Level, For Use With 3 Wire Control, Length 4.2 In., Width 3 In., Height 1 In., UL/CSA, 60 Hz, Sound Rating Better Than Class A, Thermal Protection Class P
