Hp 83712A synthesized cw generator 10 mhz-20 ghz *sale*

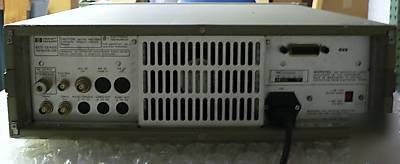

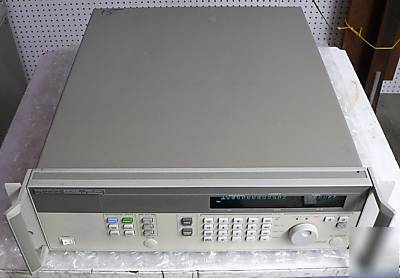

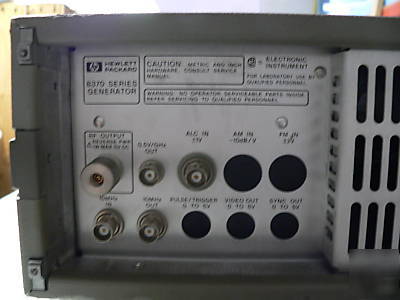

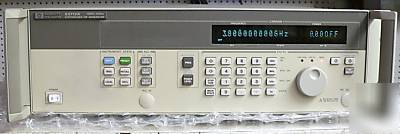

HP 83712A SYNTHESIZED CW GENERATOR 10 MHz - 20 GHz
COMES WITH OPTIONS 100, 1E8, AND UK6
Option 1E8 - Provides 1 Hz Frequency Resolution ($2,100 value)
The Agilent HP 83712A Synthesized CW Generator set a high standard for performance for an affordable price. The HP 83712A Signal Generator features fundamental oscillators and switched low-pass filters which deliver <-50 dBc harmonics, eliminate subharmonics and suppress spurious to <-60 dBc. The Agilent 83712A Signal Source provides a substantial amount of output power (typically >+14 dBm), while spectral purity is maintained even at high power levels (typical output power at frequencies below 1 GHz is +20 dBm).
Features of the HP 83712A Signal Generator include:
* Frequency range: .01 to 20 GHz
* High stability time base for frequency accuracy
* Low SSB phase noise for out-of-channel tests
* High power output for driving the LO port of mixers
* Low output power with option 1E1 for receiver sensitivity and SINAD measurements
For more information regarding this product, please click on the link below:
http://www.home.agilent.com/upload/cmc_upload/All/EPSG089958.pdf
