Cooperbussman td dual 600-v class j fuse lpj-3-2/10SP

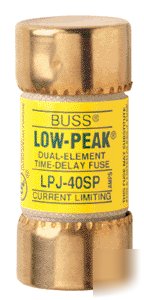

(The picture shows a different number and is for reference only)
True dual-element fuses with a minimum 10 second timedelay at 500% overload.
Long time-delay minimizes needless fuse openings due to temporary overloads and transient surges.
Can often be sized for back-up protection against motor burnout from overload or single-phasing if other overload protective devices fail.
High interrupting rating to safely interrupt overcurrents up to 300,000A.
High degree of current-limitation due to the fast speed-ofresponse to short-circuits.
Faster response to damaging short-circuit currents than mechanical overcurrent protective devices.
Reduces let-through thermal and magnetic forces in order to protect low withstand rated components.
Proper sizing provides no damage Type 2 coordinated protection for NEMA and IEC motor control in accordance with IEC Standard 947-4-1.
Dual-element fuses have lower resistance than ordinary fuses, hence they run cooler.
Lower watts loss reduces power consumption.
Unique dimensions assure that another class of fuse with a lesser voltage rating, interrupting rating or current-Iimiting ability cannot be substituted.
Space-saving package for equipment down sizing.
