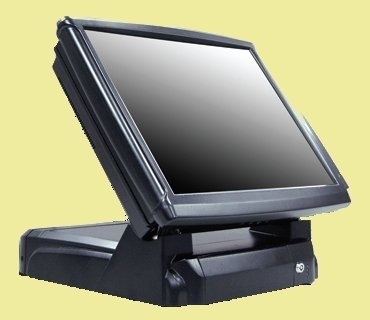

Cobra pos 478 all in one touch screen terminal pc
LISCENSED COPY OF WINDOWS XP PRO
The CobraPOS, is Touch Dynamic's System features 3 available powered serial ports as well as 4 USB ports (2.0 powered). The CobraPOS makes connecting easy with unique ports such as an external IDE connection, a 24V printer power supply port, compact flash slot, optional CDRW, and more. The CobraPOS has a unique heat pipe cooling system for harsh environments. Supporting the Intel 478 socket with an onboard Intel LAN, it delivers blistering speeds up to 3.0GHz and up to 2GB of RAM. FOR $350 MORE WE INCLUDE A BRAND NEW PRINTER WITH A 3 YEAR WARRANTY AND A NEW CASH DRAWER MAKING THIS A FULL POS SYSTEM. (***) 844-7044
-3 Available serial ports, powered
-2 powered USB 2.0 ports in front
-Speed and Reliability in POS terminal
Fujitsu Resistive (optional 3M / ELO)
Intel P4 CPU up to 3.0Ghz / Celeron up to 2.8Ghz socket 478
184 pin DDR x 2 up to 2GB DDR400
Award BIOS with enhanced ACPI 1.0 / Pnp / APM / ESCD / PCI bus 2.1 / On Now / DRAM ECC
North Bridge intel 865GV, South Bridge intel ICH5
One LPT port (SPP/EPP/ECP) IRQ and address selected by BIOS setup
COM1, COM2, COM3, COM4 on board. IRQ selected by BIOS setup (jumperless) and DC 0/5/12V output on pin 9 by jumper selector
Intel 865GV AGP, share memory from 8MB up to 64MB (DVMT*)
3.5" HDD (optional 2 x 2.5 HDD kit)
Slim type 24X CD-ROM or CDRW/DVD
4 USB ports support WIN98/2000/XP. ( Two USB ports located in front panel, two powered USB ports located in rear panel)
on board PCI Bus Master IDE 1/2, support Ultra DMA 66/100/133
intel 86562E Ethernet Chip on Board (10/100 Base T, optional Giga Bit)
Realtek ALC203 AC97 CODEC on board
ATX power switch, reset button, PS/2 mouse port, 4 LCD indicators: (Stand by, power on/off, HDD state, LAN Status), CF Flash memory type I/II socket, 2 USB 2.0 ports, Audio for MIC in, Slim type CDROM, Door with Key lock
AC main power switch, PS/2 Keyboard port, DC 12V ouput for LCD Monitor, DC 24V output for POS printer, COM 1/3/4 DB9-pin output ports, LPT D-SUB 25-pin output port, RJ-45 Ethernet output port, 2 Powered USB 2.0 ports, Two 12/24V selectable port for cash drawer driving, parallel port.
One low noise 60mm fan (two ball) for CPU heat pipe, one fan for North Bridge, one low noise 60mm fan for internal PSU
240mm (L) x 220mm (W) x 340mm (H)
ATX 250W internal PSU (UL, CSA, VDE) AC 100 to 240V, 50/60Hz
14 x 13.7 x 13.3 in (355(L) x 350(W) x 340(H) mm)
DOS/OS2 V2.1/SCO XENIX V2.3.2/SCO UNIX V3.2/NOVELL/WIN3.1/95/98/2000/NT4/XP
0C to 40C (Without HDD up to 50C)
*DVMT: Dynamic Video Memory Technology 2.0
