Lot of 2 keyence mini photoelectric sensors PZ2-41

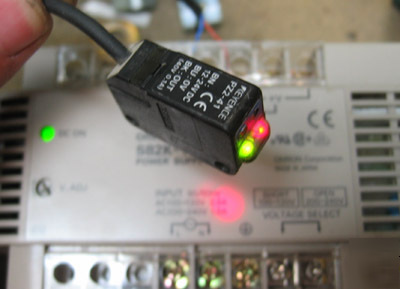

For sale are 2 Keyence PZ2-41 photoelectric sensors.
These are very nice little sensors. I've used a few on different projects and they work great.
* RED shows the status of the output
* GREEN shows the signal stability
Plus the cable disconnects from the sensor.
These sensors are used but all of them have been tested and guaranteed not DOA.
Cable length is approximately 6"
Sensors sold in lots of 2, so if you purchase 5 items you will get 10 sensors.
Information from keyence website:
http://www.keyence.ca/products/sensors/photoelectric/photoelectric.php?id=ee3675ba65034e5c7a6f2bf815daa11b
http://www.keyence.ca/dwn/downloadpz2_kcn.pdf
World's Smallest Photoelectric Sensors
Excellent Mirror Surface Detection
Sensors Can Operate Side-By-Side
* Detecting Distance - 600 mm (200 x 200 mm white mat paper)
* Detectable Object - Transparent and opaque materials
* Hysteresis - 20% max. of detecting distance
* Response Time - 1 ms max. (2 ms in alternate frequency mode)
* Light Source - Visible red LED
* Sensitivity Adjustment - By 1-turn trimmer (240 )
* Operation Mode - LIGHT-ON/DARK-ON (Switch selectable)
* Indicators - Output and power: Red LED, Stable operation: Green LED
* Control Output - NPN : 100 mA (40 V) max. Residual voltage: 1 V max.
* Protection Circuit - Reversed polarity, overcurrent protection, surge absorber
* Power Supply - 12 to 24 VDC 10%
* Current Consumption - 35 mA max.
* Ambient Light - Incandescent lamp: 5,000 lux max. Sunlight: 20,000 lux max.
* Ambient Temperature - -20 to +55 C
* Housing - Glass-fiber reinforced resin
