5 in 1 environmental digital multimeter thermocouple
5 in 1 Environmental Digital Multimeter Thermocouple
The large LCD display is easy to read and is backlit, allowing for reading in dark rooms or workshops. The central dial has various positions allowing you to choose which is appropriate for the measurement you want to take, making this an essential piece of equipment for general maintainence and measurement.
* 5-in-1: combines sound, light, humidity, temperature and multi meters in one unit
* Multimeter measures AC/DC voltage, AC/DC current, resistance, frequency, duty, capacitance and performs continuity diode test
* Light meter function is fully cosine corrected for the angular incidence of light
* Auto and manual range functions
* Relative measuring function
* Convenient single operation range switch
* Negative polarity indication
* Takes 10 different measurements
* Easy-to-read, large LCD screen with light option
* Battery operated - no need to charge before use
* Tough unit is made from ABS plastic
* Foldable stand on back of meter
This is a professional quality instrument, designed for use by inspectors, testers, DIY-ers and hobbyists who need accurate and reliable readings. The digital multimeter has a wide range of measurement capabilities and a sturdy body which is protected by ABS casing
* Sampling time: approx 0.4 sec
* Fused protection: F 500mA/250V
* Temperature factor: <0.1x accuracy/ C
* Circumstance temperature: 23 C
* Operating temperature: 0 C ~ 40 C (32 F ~ 104 F)
* Storage temperature: -10 C ~ 50 C (10 F ~ 122 F)
* Operating altitude max: 2000m (7000ft)
* Compliant: IEC 1010, CAT II 1000V, CAT III 600V over voltage and pollution 2
* Dimensions: 178 x 85 x 40mm
* Screen dimensions: 55 x 33mm
* Weight (inc battery): 320g
* Power: X1 9V battery, NEDA 1604 or 6F22
400mV range, 250V DC or rms AC
400m range, 250V DC or rms AC
Display reads approx forward voltage of diode
Alarm sounds when test resistance is lower than 40
F 500mA/250V fuse (quick acting)
3.5%dB at 94dB, 1kHz sine wave

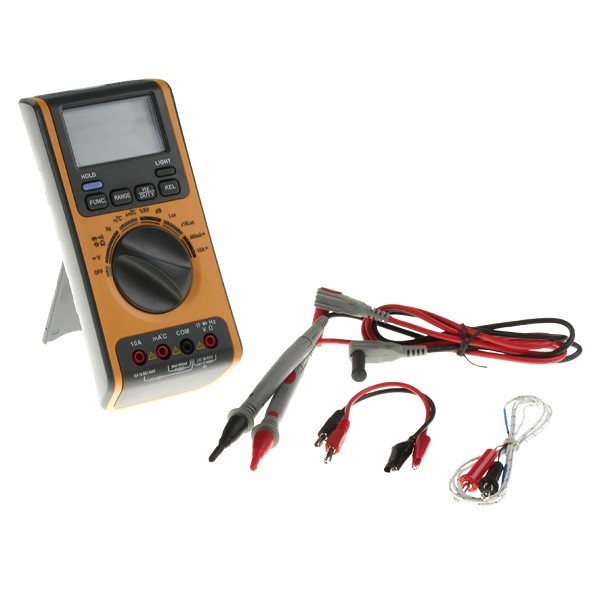

The 5-in1 digital environmental multimeter is brand new, boxed and complete with:
* X1 set of test leads (electric ratings 1000V, 10A)
* X1 set thermocouple (K type)
