Hp 6236B triple out variable regulated dc power supply

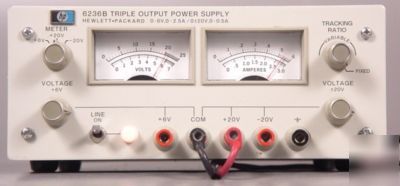

HP 6236B TRIPLE OUT VARIABLE REGULATED DC POWER SUPPLY
YOUR PURCHASEIS FOR A FULLY REFURBISHED, TESTED AND GUARANTEED, AMERICAN MADE, HEWLETT PACKARD BRAND, MODEL 6236B, TRIPLE OUTPUT, 0 - 6 VOLTS @ 0 - 2.5 AMPS AND PLUS AND MINUS, 0 - 20 VOLTS @ 0 - .5 AMPS EACH, PRECISION, BENCH / LAB, REGULATED, VARIABLE DC POWER SUPPLY WITH ANALOG VOLT / AMP METERING, COMPLETE WITH COPY OF OPERATION AND SERVICE MANUAL, WORKING PERFECTLY AND IN EXCELLENT CONDITION (SEE ALL OF THE PHOTOS FOR DETAILS, NOTE: MAY DIFFER SLIGHTLY FROM PHOTO).
FOR COMPLETE SPECIFICATIONS ON THIS SPECIFIC PRODUCT, PLEASE CLICK ON THE FOLLOWING HYPERLINK
THIS IS THE IDEAL PIECE OF PROFESSIONAL TEST GEAR FOR YOUR BENCH TO CHECK OUT AND EVALUATE ANY ELECTRONIC OR ELECTRICAL EQUIPMENT THAT OPERATES ON VOLTAGES UP TO 6 OR 20 VOLTS AND DRAWS AS MUCH AS 0.5 OR 2.5 AMPS SUCH AS ANY 12, 16, 18, OR 20 VOLT AVIONICS EQUIPMENT, RADIOS, INTERCOMS, GYROS, INSTRUMENTS, MOTORS, LIGHTS ETC..
IT'S DUAL OUTPUTS PROVIDE, 0 - 20V @ 0 - .5A (C/V, C/L). THESE TWO SUPPLY OUTPUTS CAN TRACK EACH OTHER PROVIDING +/- SUPPLY RAILS WITH ADJUSTABLE VOLTAGE OFFSET OR CAN BE USED INDEPENDENTLY AND IN SERIES FOR GREATER VOLTAGE.
THE POWER SUPPLY ALSO PROVIDES AN ADDITIONAL SINGLE, 0 - 6V @ 0 - 2.5A OUTPUT WITH CONSTANT VOLTAGE (C/V) AND CURRENT LIMIT (C/L) MODES.
THE HEWLETT PACKARD 6236B, IS A TRIPLE OUTPUT PRECISION REGULATED DC LAB SUPPLY THAT CAN BE UTILIZED FOR ANY APPLICATION IN ELECTRONIC CIRCUIT DESIGN OR REPAIR.
HEWLETT PACKARD MAKES THE FINEST BENCH SUPPLIES IN THE WORLD AND THIS POWER SUPPLY PROVES IT!
I AM SELLING THIS ITEM FULLY GUARANTEED FOR $289.00. (THIS PRODUCT ORIGINALLY SOLD FOR MORE THAN $1,450.00! A.F.I.) B20-XXXXXX-41-W
