Eagle signal controls HP5 cycl-flex reset timer HP54A6
HP5 Cycl-Flex Reset Timer HP54A6

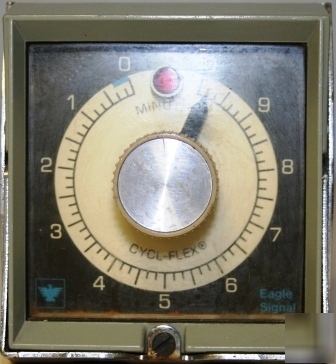

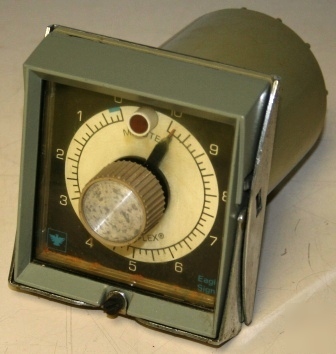

Eagle Signal Controls HP5 Cycl-Flex Reset Timer HP54A6
In nice physical and cosmetic condition.
Electrical Requirements: 120 Volts AC, 60 Hz
The HP5 Cycl-Flex series timer is a high quality, synchronous motor driven reset timer housed in the standard Cycl-Flex plug-in housing.
16 standard time ranges from 5 seconds to 60 hours
Knob adjustable time ranges - progress pointer for each
Highly visible, calibrated dials (7.85 inch circumference)
Easily read and well-spaced calibrations
Red progress pointer displays remaining time interval
Pilot light indicates when timer motor is energized
Standard timers supplied with "power on" clutch operation
Optional reverse action clutch will not reset on power failure
15 terminal ABS (UL rated 94V-0) molded housing has high impact resistance and will not support combustion.
Reset Time: 1/2 second at max. setting
Voltage/Frequency: 120Volts AC (+10, -15%), 50/60 Hz
Burden: Motor: 2.45 VA, 120 Volts AC
Output Rating: 10 amps, resistive, 120 Volts AC
Power On Response: 28 ms average pull-in, 17 ms average drop-out
Temperature Range: 0 to 140 Fahrenheit (-18 to +60 Celsius)
