Used 400 ton cincinnati #13-8 press brake, 1974

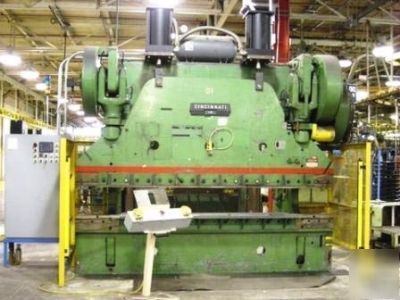

400 Ton, CINCINNATI No. 13-8 Mechanical Press Brake, 1974 [#1071]
Capacity: 400 Ton at Bottom Stroke, 260 Ton at Midstroke,
Overall Length of Bed and Ram: 12',
Distance Between Housings: 8'6",
Motorized Tilting Ram Adjustment: 6",
Depth of Pit Required: approx. 30",
All Steel Frame- Interlocked Construction,
Bed and Ram Machined for Removable Angle Brackets,
Removable Angle Brackets on Ram and Bed,
AC Main Drive Motor and AC Ram Adjustment Motor,
Pedestal Mounted Dual Palm Button Operation,
Dimensions, Approx.: 200" L-R x 100" F-B x 130" H.
