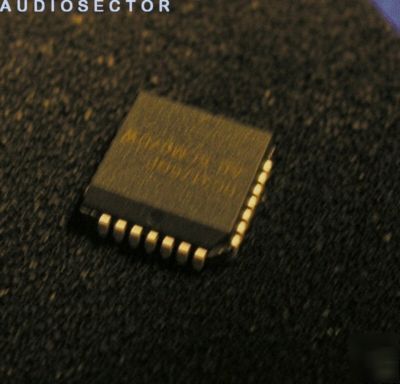

UC3176 full bridge power amplifier 2A 35V dual amp (X5)
Dual Power Op-Amps, 35V, 2A ea.
Dual Power Operational Amplifiers
Precision Current Sense Amplifier
Parking Function and Under-Voltage Lockout
Safe Operating Area Protection
Output stage protection includes foldback current limiting and thermal shutdown, resulting in a very rugged device.
Auxiliary functions on this device include a dual input under-voltage comparator that can be programmed to respond to low voltage conditions on two independent supplies. In response to an under-voltage condition the power Op-Amps are inhibited and a high current, 100mA, open collector drive output is activated. A separate Park/Inhibit command input.
The devices are operational over a 3V to 35V supply range. Internal under-voltage lockout provides predictable power-up and power-down characteristics.
