Swagelok ss-65TSW16T-SC11 valve

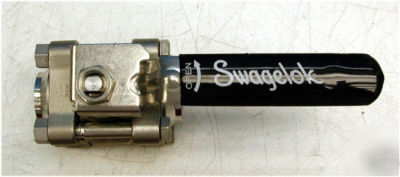

Swagelok SS-65TSW16T-SC11 Valve
Size 1 in. Nominal - 65 Series
Valve Material Stainless Steel
End Connection 1 Type Tube socket weld
End Connection 2 Type Tube socket weld
Ball/Stem Material Stainless Steel
Cleaning Swagelok Standard cleaning SC-10
Fastener Material 316 Stainless Steel
Flange Seal Material Fluorocarbon FKM
Seat Spring Material 316 Stainless Steel
Stem Bearing Material Alloy X750
Testing Testing according to WS-22
Max Temperature Pressure Rating 450 F @ 100 PSIG /232 C @ 6.8 BAR
Room Temperature Pressure Rating 2200 PSIG @ 100 F /151 @ BAR 37 C
