Sokkia SET530R 5"conventional total station pre-loved

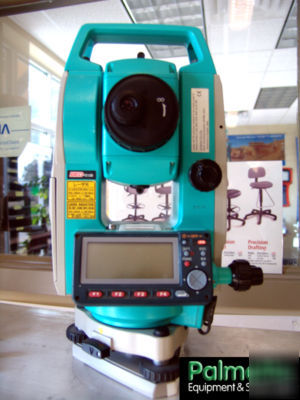

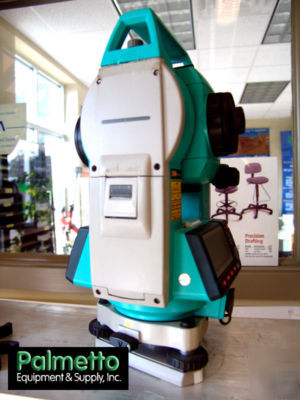

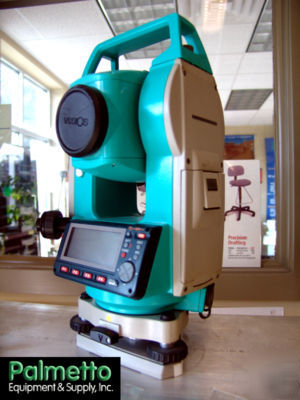

Pre-Owned Sokkia Set 530R Total Station reflectorless total station
Preowned Sokkia Set 530R Total Station
This gun has been checked out and is like NEW
150Meter Reflectorless with Red-Tech II EDM
If you have any questions whatsoever, give us a call. Good Luck!
Its extremely narrow, visible, red laser truly sets the Series 30R apart. the Series 30R makes it easy to communicate with Data Collection and With its patented RED-tech II EDM technology, the Series 30R uses a truly narrow-beam EDM, regardless of target type, and automatically attenuates the signal when standard glass prism or reflective sheet targets are selected.
* High-precision reflectorless distance measuring with a narrow-beam visible laser
* Ability to measure through obstacles such as chain-link fences and trees
* Compatibility with prisms for long-range measurements
* Superior performance in tough environments
Additional Info about Sokkia 30R Series
Sokkia's revolutionary digital signal processing technology, RED-tech, relies on a unique procedure for measurement beam analysis. This innovative digital signal processing technology maximises the speed and precision of reflectorless distance measurement. Using an A/D converter, it simultaneously samples measuring signals in three different frequencies, furthermore, RED-tech uses advanced software to calculate distances. As a result, RED-tech ensures that the calculation method most suited to the condition of the measuring beam is selected. It also is able to deliver greater accuracy, speed, and range.
* Ultra-wide reflectorless measurement range
* From extra-long distances to remarkably short ones, the Series 30R offers accurate reflectorless measurement over a tremendous range of distances.
The Series 30R total stations feature a Class 3R laser, and cover a range of 0.3m (1 ft. to 1,140 ft.). Models equipped with a Class 2 laser are also available. These have a reach of up to 150m (490ft.) or 100m (320ft.).
SET330R/SET530R - 30x SET630R - 26x
SET330R/SET530R - 3" SET630R - 3.5"
SET330R - 3" (1mgon) SET530R - 5" (1.5mgon) SET630R - 6" (1.9mgon)
Distance measurement Modulated near infrared LASER, Laser diode, Coaxial EDM transmitting and receiving optics (IEC Class 2, FDA Class ll LASER)
SET230R/SET330R/SET530R - 150m (490ft.) SET630R - 100m (320ft.)
SET230R/SET330R/SET530R - 5,000m (16,400 ft.) SET630R - 4,000m (13,000 ft.)
SET330R/SET530R - Optional SET630R - -
SET330R/SET530R - On both faces SET630R - On one face
SET330R/SET530R - 30" / 2mm SET630R - 40" / 2mm
SET330R - 3' outer circle SET530R/SET630R - -
SET230R 2" Reflectorless Electronic Total Station
SET630R 6" Reflectorless Electronic Total Station
EL6 30x Eyepiece for SET630R Only
