New * * allen bradley ab 1762-L40BXB /c 1762L40BXB frn 12
Rockwell Automation > PLC & HMI > Small Controllers > MicroLogix > 1762-L40BXB/C
Allen Bradley 1762-L40BXB MicroLogix 1200 Controller, 24V DC Power, (20) Standard 24V DC Digital Inputs, (4) Fast 24V DC Digital Inputs, (8) Relay Outputs, (7) Standard 24V DC FET Outputs, (1) Fast 24V DC FET Output, Series C
Allen Bradley 1762-L40BXB MicroLogix 1200 Controller, Number of I/O: 24 inputs, 16 outputs; Input Type: 24V DC sink or source; Input Signal Delay: Selectable - 0.025, 0.075, 0.1, 0.25, 0.5, 1, 2, 4, 8, or 16 ms; Output Type: 8 Relay, 8 FET (24V DC); Input Voltage Range: 20.4-26.4V DC; Input Voltage, Nom.: 24V DC; Real Input Power, Max.: 37W; Power Supply Output: 600 mA @ 5V DC, 500 mA @ 24V DC; Continuous Output Current, Max.: 8A/common, 30A total @ 150V AC, 20A total @ 240V AC; Weight: 1.1 kg (2.4 lb).
Allen Bradley 1762-L40BXB Controller provides 6K-word memory for a maximum program of 4K words and maximum data of 2K words with 100% data retention. An optional memory module can be used with 1762-L40BXB controller to provide program and data backup with program upload and download capability. The optional real-time clock can be used with this 1762-L40BXB Controller to enable time scheduling of control activities. The 1762BXB Controller can be mounted either on a panel or on a DIN-rail.

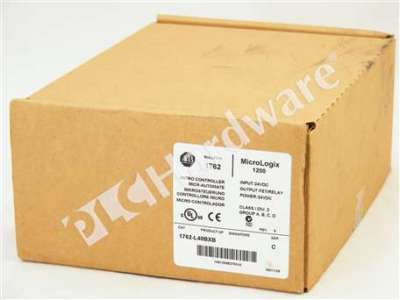

One New Open Box Allen Bradley 1762-L40BXB Series C, MicroLogix 1200 Controller, 24V DC Power, (20) Standard 24V DC Digital Inputs, (4) Fast 24V DC Digital Inputs, (8) Relay Outputs, (7) Standard 24V DC FET Outputs, (1) Fast 24V DC FET Output.
