8.0INCH tft lcd, LB080WVV3-B1, 800X480

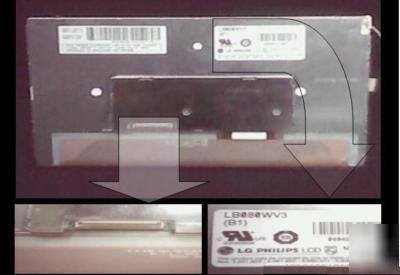

LG 8.0inch TFT LCD, LB080WV3-B1, 65USD/pcs
This module utilizes amorphous silicon thin film transistors and a 16:9 aspect ratio. A 8.0 active matrix
liquid crystal display allows full color to be displayed.
The applications are Portable DVD, Amusement and others AV system.
? Utilizes a panel with a 16:9 aspect ratio, which makes the module suitable for use in wide-screen
The 8.0 screen produces a high resolution image that is composed of 384,000 pixel elements in a stripe
Wide viewing angle technology is employed.
[The most suitable viewing direction is in the 6 o clock direction.]
By adopting an active matrix drive, a picture with high contrast is realized.
A thin, light and compact module is accomplished through the use of COG mounting technology.
By adopting a high aperture panel, high transmittance color filter and high transmission polarizing plates,
transmittance ratio is realized.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal.
DE(Data enable) only mode. (60Hz)
4.8 Power Consumption Watt(Typ)
Number Of dots 800(H) X 3(R,G,B) X 480(V)
Signal Interface Digital Interface (CMOS TTL )
Screen Size (Diagonal) 8.0 ( 20.27 )
Pixel Pitch 0.2208mm(H) 0.2070mm(V)
Surface Treatment Anti-Glare Treatment
Note: This LCD is CCFL backlight
