New gse ita-10K-ss integrated tank weighing assembly

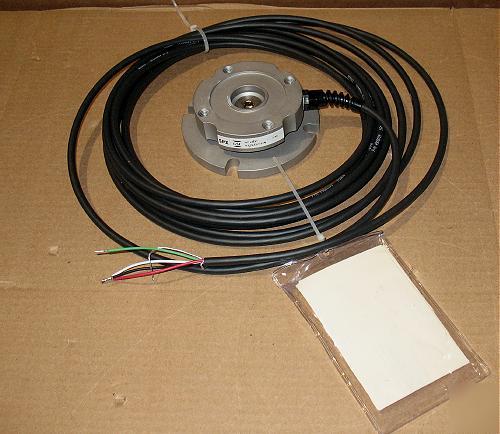

GSE ITA-10K-SS Integrated Tank Weighing Assembly NEW
GSE ITA Integrated Tank Assembly is an innovative self-contained low profile weighing assembly that integrates the mounting assembly and load cell.
The ITA design allows up to a 3 degree off axis angle with no effect on weighing accuracy. The durable stainless steel hermetically sealed construction prevents intrusion from moisture or chemicals, providing years of service in the most hostile environments.
Integral to the ITA design is Uplift Restraint and Side Load protection, eliminating the need for check rods or stabilizing hardware on most applications.
Integrated load cell and mount
Full scale putput: 3 mV/V nominal.
Bridge Resistance: 350 ohm nominal.
Operating temp: 10-110 F (-12 to 43 C).
Seal Type: Hermetic, IP66 / IP68.
Calibration: Software using Actual mV/V or Calibration Weight.
Cable Length: 25 feet, 4-Cond. Shielded.
Approvals: Ntep (pending), Factory Mutual - FM.
Tank, vessel and hopper weighing
Includes Calibration Cert 6/5/08
