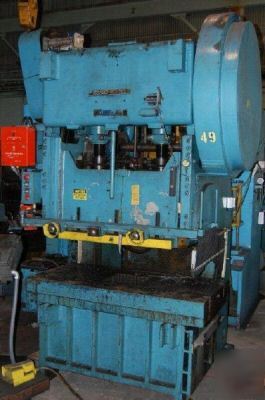

80 tn johnson open back dbl-crank back geared press
80 TON JOHNSON OPEN BACK DOUBLE-CRANK
New 1960, Serial No 59156, Model G2-80-60-30
Tonnage Capacity, Rated................... 80 TON
Stroke Length............................. 5"
Shut Height to Bed, (SDAU)................ 18"
Ram Adjustment............................ 3.5"
Ram Area, L-R x F-B....................... 44" x 24"
Bed Area, L-R x F-B....................... 60" x 30"
Bed Opening, L-R x F-B.................... 36" x 12"
Throat Depth.............................. 16"
Opening Thru Back......................... 42"
Drive Motor, Horsepower................... 7.5 HP
Floor Space Required, W x D............... 5'10' x 5'4"
Overall Height............................ 10'3"
Weight, Approximately..................... 21000 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $12,500.00
