8' arm 22" col dia carlton 8' - 22" radial drill, 8' -
8' Arm 22" Col Dia Carlton 8' - 22" RADIAL DRILL, 8' -
8' Arm Lth 22" Col Dia Carlton 8' - 22" RADIAL DRILL, 8' - 22"

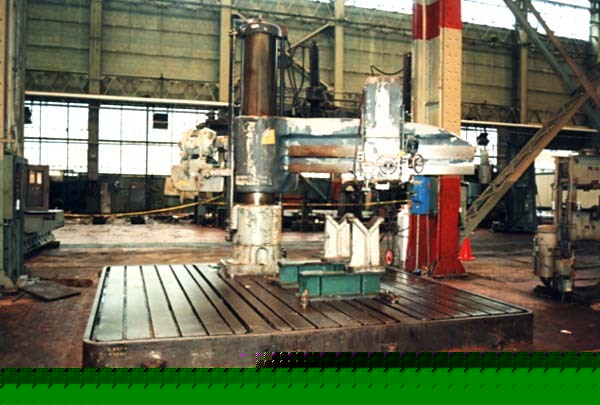

8' x 22" CARLTON RADIAL DRILL w/ OVERSIZED BASE
ARM LENGTH ................................. 8'
DIAMETER OF COLUMN ......................... 22"
MAXIMUM SPINDLE RADIUS ..................... 9'3"
MINUMUM SPINDLE RADIUS ..................... 2'6"
MAX DISTANCE, SPINDLE TO BASE .............. 98"
MIN DISTANCE, SPINDLE TO BASE .............. 20.5"
WORKING SURFACE OF BASE .................... 61"W x 102"L
OVERALL LENGTH OF BASE ..................... 170"
HEIGHT OF BASE ............................. 12.5"
VERTICAL TRAVEL OF SPINDLE IN HEAD ......... 24"
SPINDLE DIAMETER ........................... 4"
TAPER IN SPINDLE ........................... #6 MT
TRAVERSE OF ARM ON COLUMN .................. 53.5"
TRAVERSE OF HEAD ON ARM .................... 81"
36 SPINDLE SPEEDS .......................... 80 TO 800 RPM
18 FEEDS ................................... .004 -.125 IPR
TAP LEADS .................................. 8,11,14,18 TPI
MAX HEIGHT OVER COLUMN CAP ................. 13'6"
MAX HEIGHT OVER HEAD ....................... 14'5"
APPROX WEIGHT INCLUDING TILT TABLE ......... 67,700 LBS
28 1/4" x 32 1/4" x 24" CARLTON T-SLOTTED TILTING BOX TABLE
25 HP 3/60/220-440 VOLT MAIN DRIVE MOTOR WITH CONTROLS
