Cdv-717 (cd v-717) radiation detector survey METER4

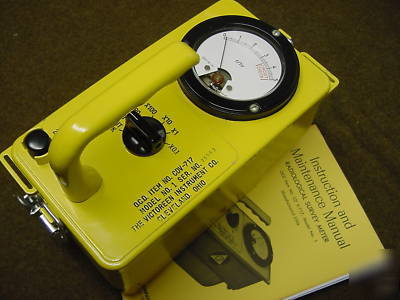

Manufactured in the 1960s, this is an unused Civil Defense radiation survey meter, designed for measuring dangerous radiation levels after a nuclear event. A unique, and functional, historical object from the cold war era. Manual copy included. Checked using its Circuit Check function.
In discussion with Victoreen, I asked: 1) Are these meters still serviceable? [ They are serviceable. ]; 2) Would they be a good home-use instrument in case of a radiological event? [ Yes. ]; 3) How delicate are they? [ They re tough. They tend to read within 20% without calibration, which is about the accuracy that is necessary for home use. ].
CD (Civil Defense) label on one side. Unused, and clean, but may have minor scrapes, rub marks and occasional dings from bulk storage. [May also have early calibration tags.]

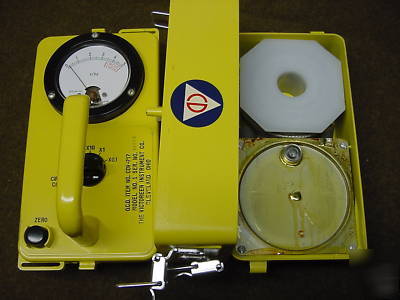

PLEASE NOTE: This is not a Geiger Counter for prospecting. Though designed like a Geiger Counter, it is shielded to detect only high-energy Beta (2 MEV and up), and Gamma radiation, from a nuclear explosion. Meter scale is 0-5 R/Hr. Ranges are: X100, X10, X1, X0.1. The meter separates into three components. The ion chamber in the bottom can extend 25-feet on a cable. This allows the detector to be placed outside, while the meter is read inside. The top separates to install the battery (one D cell) and access the circuitry.
