Blake co-ax indicator set w custom wood storage box

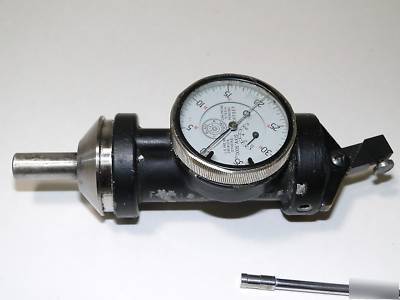

Blake Co-Ax Indicator Set w Custom Wood Storage Box
-Set is in used conditon and seems to be working just fine

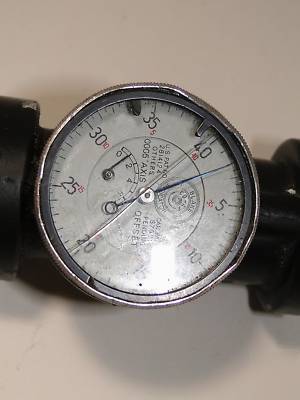

-Needle does not stick but may need to be calibrated
-Plastic cover has a crack down the middle (does not affect tool)

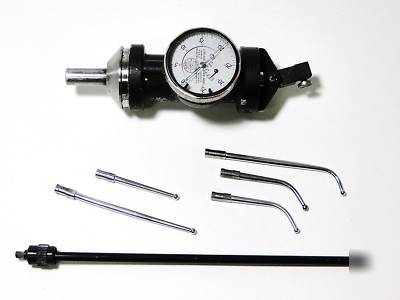

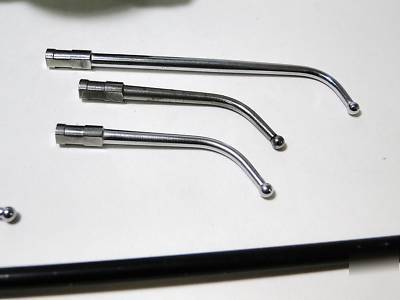

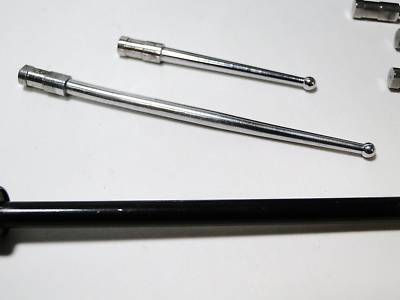

-Feelers, retraining arm and indicator included (everything pictured is included)

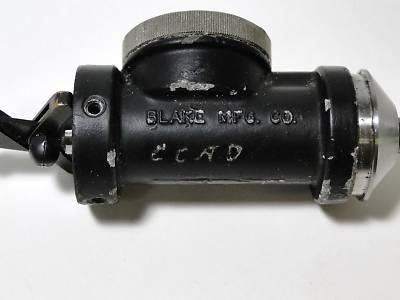

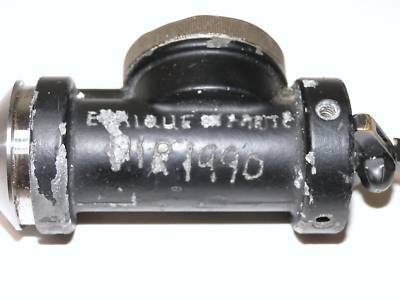

-These tools have engravings on them (purely cosmetic & doesnt affect tools operation)

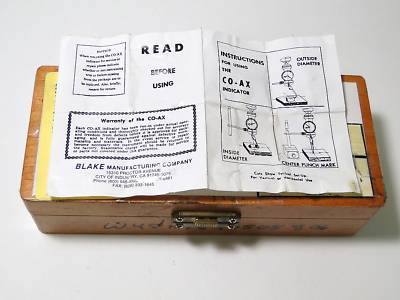

-Custom wood storage box also included
* Feeler ball diameter: 1/8 inch
* Measuring range: 1/4 inch axis offset
* Capacity: 5/32 to 4.25 inches internal; 0 to 4.25" external. Optional feelers extend these capacities to 12 inches. See accessories list below.
* Speed: spindle rotation up to 800 rpm
* Locating accuracy: .0002" of true center
* Initial positioning: within 7/16 inch diameter of true location
* Graduations: .0005" or 0,01mm
* The entire gage will just fit into a 2.2" diameter cylindrical space
* Overall length of gage, without the feeler is roughly 5.2"
* The spindle diameter is 3/8" on the inch model, 10 mm on the metric model.
The indicator dial remains stationary while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table in the X-Y axis while conveniently observing the needle deflection.
The Co-Ax indicator operates at any angle from horizontal to vertical without any change, and from internal to external diameter by simply changing the feeler." - SPI catalog
The Co-Ax indicator will read accurately even if the machine spindle "wobbles."
