Anritsu site master S331A antenna sitemaster S331
* Wiltron SM/STL SiteMaster Standard Load
* Wiltron SM/PL SiteMaster Precision Load
* Wiltron SiteMaster Standard Short SM/STS
* N Male - N Male Extension Cable
* Anritsu SiteMaster Software Tools

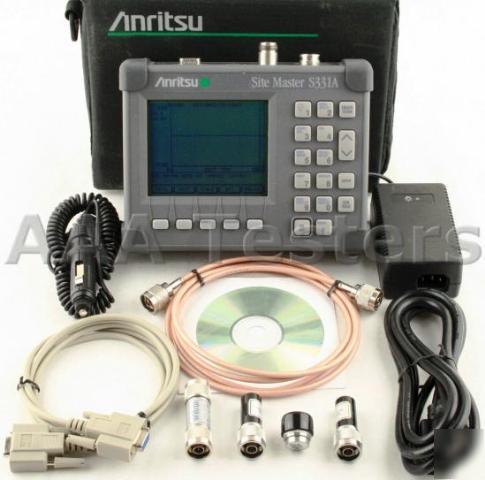

Anritsu SiteMaster S331A Cable & Antenna Analyzer ( Handheld ) 25MHz - 3.3GHz
Includes Wiltron 22N50 Open/Short, Wiltron SM/STL SiteMaster Standard Load, Wiltron SM/PL SiteMaster Precision Load, Wiltron SiteMaster Standard Short SM/STS, Carrying Case & Full Accessories!
* Accurate Test of Antenna Systems and Active/Passive Components
* Built-in Distance-To-Fault
* Immunity to Live Site RF Interference
* Synthesizer Accurate to 75 ppm
* Automatically date/ time stamp
* Alphanumeric labeling give distinct names
* Instrument calibration is valid in all data point setting
* 10 user configurations include calibrations
* Silica Glass Based Optical Fibers
* Math Functions: Trace - Memory, Trace + Memory
* Direct Printer Control via RS232 Serial Port
The Site Master S331A is a hand held SWR/RL (standing wave ratio/return loss), and Distance-To- Fault (DTF) measurement instrument that includes a built-in synthesized signal source. All models include a keypad to enter data and a liquid crystal display (LCD) to provide graphic indications of SWR or RL over the selected frequency range and selected distance.
The Site Master is designed for measuring SWR, return loss, or cable insertion loss and locating faulty RF components in antenna systems. Power monitoring is available as an option. The displayed trace can be scaled or enhanced with frequency markers or a limit line. A menu option provides for an audible "beep" when the limit value is exceeded. To permit use in low-light environments, the LCD can be back lit using a front panel key.
The Site Master Software Tools program also performs DTF (Distance To Fault) and Fault Location.
* Frequency Range: 25 to 3300 MHz
* Frequency Accuracy: (RF Source Mode) 75 parts per million @ 25 C*
* Range: 0.00 to 54.00 dB
* Test Port, Type N 50 Ohms ***Immunity to Interfering signals up to the level of: 5 dBm, reflection
* Maximum Input (Damage Level):
* Test Port, Type N: +22 dBm
* Measurement accuracy depends on calibration components. Precision calibration components have a directivity of 42 dB.
* Trace Memory: 40 maximum
* RS-232: 9 pin D-sub, three wire serial
* Electromagnetic Compatibility Meets European community requirements for CE marking
* External DC Input: +11 to +15 Vdc, 1250 mA max.
* Storage: 20 C to 75 C
* Operation: 0 C to 50 C
