Angle plate toolmaker machinist hardened stepped 1/4X20

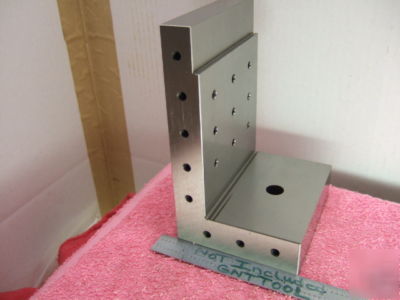

PRECISION GROUND ANGLE PLATE WITH (1) STEP 2.150" X 1.09" FROM TOP DOWN. ANGLE PLATE HAS ( 25TOTAL) 1/4" X 20 HOLES AS SHOWN. FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW IT IS NICE!!!!! ANGLE PLATE IS AS SHOWN IN MINT PRECISION GROUND AND PRECISION CHAMFERED CONDITION. MACHINIST OR TOOLMAKER TYPICALLY USED FOR GRINDING, LIGHT MILL WORK OR EVEN INSPECTION AS IT IS A PRECISION GROUND ANGLE PLATE. SEE PICS. EXTREMELY NICE WELL MADE TOOLMAKER TOOLS. WE HAVE MANY TOOLS LISTED BY THIS AMERICAN TOOLMAKER INCLUDING V BLOCKS ,SINE SLIDE DRESSER,SLIDE DRESSER AND MUCH MORE! BE SURE TO CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS. SEE PICS AND ASK ANY QUESTIONS.

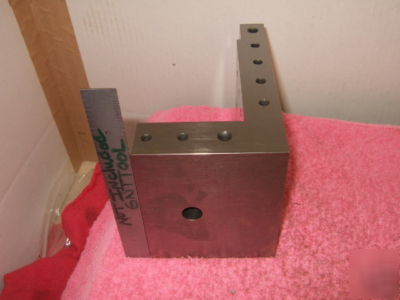

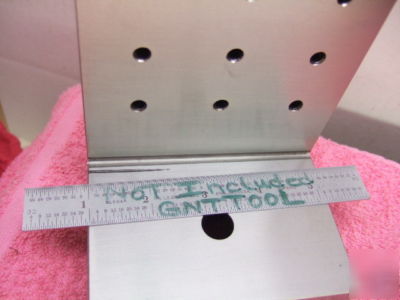

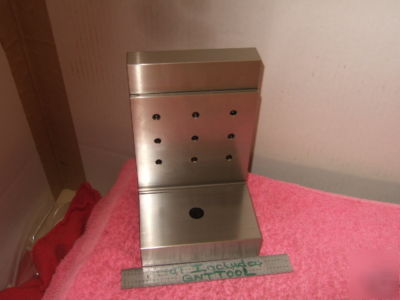

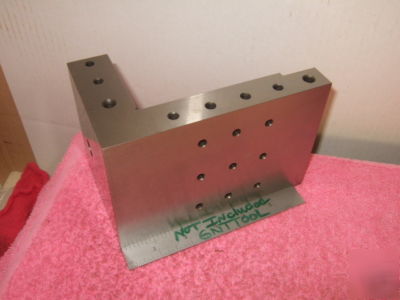

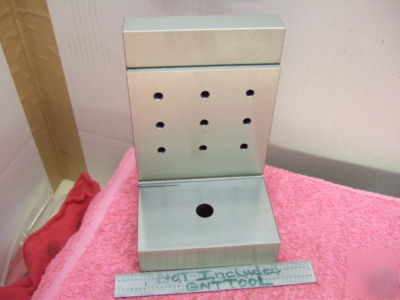

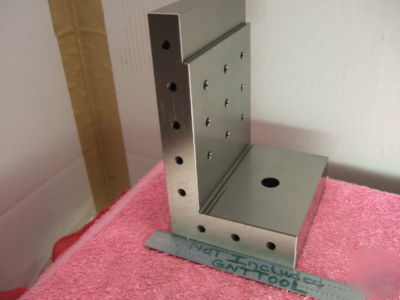

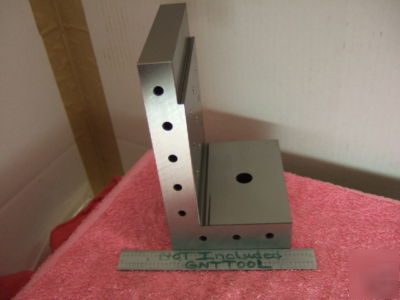

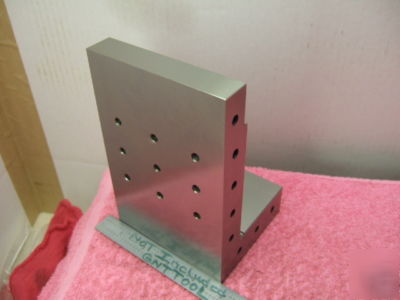

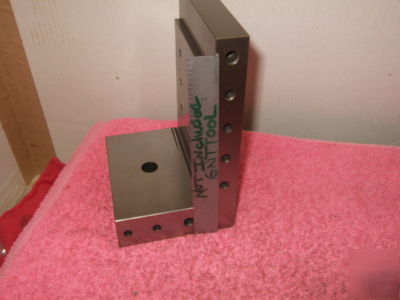

ANGLE PLATE MEASURES 4.2" WIDE X 6.40" TALL LEG WITH (9) TAPPED 1/4" X 20 HOLES IN ITS FACE AND MORE UP EACH SIDE AS SHOWN. SECOND LEG MEASURES 3.675" LONG WITH 17/32" OR .53" HOLE IN ITS FACE. BLOCK HAS (25) TAPPED HOLES 1/4" X 20 IN FACE AS SHOWN AND (1) .15" X 1.09" STEP TO USE AS NEEDED, AS SHOWN IN PICS. ONE TAPPED HOLES ON SIDE IS COUNTERSUNK LARGER THAN REST AND ONE HAS BEEN RELIEVED 9/32" X 7/32" DEEP BUT STILL HAS A GOOD 5/8" THREAD I DO NOT KNOW WHY IT IS THIS WAY,BLOTS GO EASILY INTO EACH HOLE. A SAW-CUT IS ALSO PRESENT FROM ORIGINAL MANUFACTURER AND IS SHOWN. DOES NOT AFFECT ACCURACY OR USE BUT IS THERE. LONGEST LEG IS .97" THICK AND .815" THICK AND OTHER IS 1.185" THICK. STEP IS .15" X 1.09" FROM TOP.
SUPER NICE CLEAN READY TO USE PLATE MADE BY AMERICAN TOOLMAKERS!!!!! PLATE IS IN NICE READY TO USE CONDITION AS SHOWN I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE!
