#9686 - 45 ton bliss model c-45 flywheel type obi press

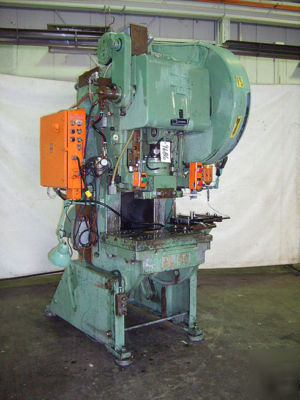

45 TON BLISS MODEL C-45 FLYWHEEL TYPE OBI PRESS
Shut height (SDAU to bed) 12-1/4"
Punk shank hole in ram 2" Diameter x 3" Depth
Opening in bed with 14" diameter intersecting circle 12"F-B x 16"R-L
Overall size 53"L x 74"D x 103" High
5 HP 3/60/230 - 460 Volt Main drive motor
Electrical push button controls
Bolster plate (2-1/4" thick) drilled & tapped
Dual palm push button controls
