30” x 168”cc monarch pathfinder n.c. straight bed lathe

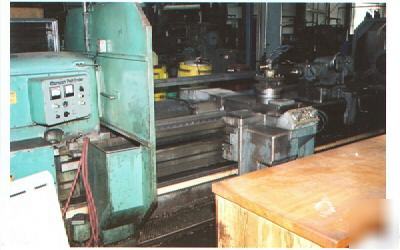

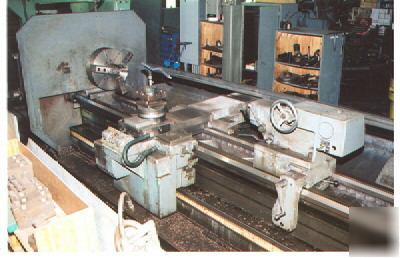

30 x 168 cc MONARCH Pathfinder N.C. Straight Bed Lathe, Model 25NC, S/N 35910, New 1974
Max. Swing over cross-slide 20
Tailstock spindle diameter 5
4 Ranges spindle speeds (Infinity variable) 10-1250 RPM
Minimum programmable increment .0001
Longitudinal threading rates up to 150 IPM
Interchangeable square tool post and hexagon tool post
12 Dia. capacity roller steady rest
Built-in live tailstock center
20 Dia. 3-jaw power chuck w/ extra jaws
Pan bed and Coolant system with sliding splash guard
Automatic coolant supply to each tool
Heavy duty cross bridge on hardened dovetail with ball screw drive
Carriage driven by preloaded rack and pinion with precision feed back and hydraulic Servo Motor
G.E. Mark Century 7500 N.C. Controller
