14" topcon pp-36 optical comparator, profile & surface
14" Topcon PP-36 OPTICAL COMPARATOR, PROFILE & SURFACE

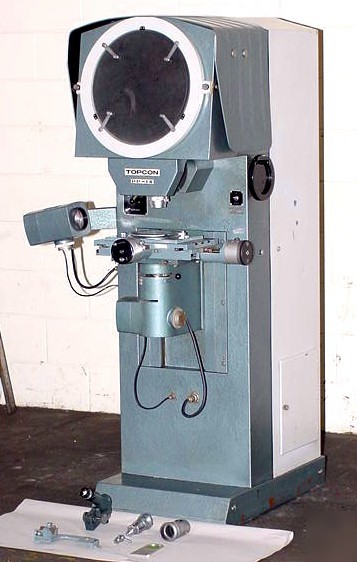

14" Screen Topcon PP-36 OPTICAL COMPARATOR, PROFILE & SURFACE ILL., MICROMETER STAGE w/ROTARY
14" TOPCON (TOKYO OPTICAL CO. - MADE IN JAPAN)
APPROXIMATE STAGE AREA ........................8" x 14"
GLASS AREA .................................... 4- 1/2"
APPROXIMATE VERTICAL TRAVEL OF STAGE ............... 7"
STAGE TRAVEL WITH MICROMETER, L-R AND F-B .......... 1"
APPROXIMATE STAGE TRAVEL BY HAND, L-R .......... 3-3/4"
APPROXIMATE STAGE TRAVEL BY HAND, F-B .............. 2"
APPROXIMATE WEIGHT ........................... 750 LBS.
SURFACE ILLUMINATION ATTACHMENT
STAGE HAS MICROMETERS FOR X-Y (.0001" GRAD.)
LOW & HIGH INTENSITY SELECTIONS FOR PROFILE & SURFACE
STAGE HAS ROTARY TABLE THAT TURNS THE GLASS PIECE
FOR FINE POSITIONING (S/N: #26209)
** INSPECT IN OUR HARRISON, N.J. FACILITY **
