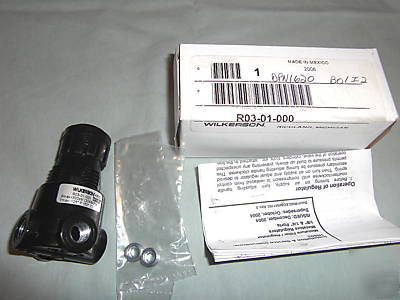

Wilkerson 1/8" mini regulator #R03-01-000
Wilkerson 1/8" Mini Regulator #R03-01-000
* Solid Control Piston with Lip Seal for Extended Life
* 3.08 inch (78mm) high by 1.65 inch (42mm) wide
* Easy Maintenance & Service
* Pressure & Temperature Ratings
* 0 to 300 PSIG (0 to 20.7 bar)
* 32 to 125 F (0 to 52 C)
2 to 125 PSIG (0 to 8.6 bar)
1 to 60 PSIG (0 to 4.1 bar)
1 to 30 PSIG (0 to 2.1 bar)
1 to 15 PSIG (0 to 1.0 bar)
* Note: Inlet pressure 100 PSIG (6.9 bar). Secondary pressure 90 PSIG (6.2 bar) and 10 PSIG pressure drop
