Trumeter DPM962-r lcd digital panel meter #114

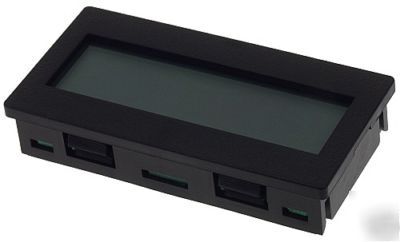

Trumeter DPM962-R 3-1/2 Digit LCD Digital Panel Meter
LCD module with a full scale reading at 200mV. Operated from either 5VDC or 9VDC with a range of annunciators for common engineering units.
10mm black character high contrast LCD display.
Hold function with annunciator.
Low battery warning with 9V operation only
Overall Dimensions: 2-13/16" wide x 1-7/16" high x 1/2" thick
Screen Dimensions: 2-3/8" wide x 3/4" high
Fits Into Rectangular Hole Size: 2-3/4" wide x 1-5/16" high
Manufacturers Webpage For This Item:
http:// /Home.php?class=Process+Control+%26+Instrumentation&app=Digital+Panel+Meters&item=DPM962&lang=english
Manufacturers Instructions For This Item In PDF:
http:// /cmsGet.php?T=itemlanguage&K=item&V=DPM962&K2=language&V2=English&I=pdfInstructions&Attach=DPM962Instructions.pdf
ElectricScooterParts Item #114
