Hp 5300B measuring system hp 5302A universal counter

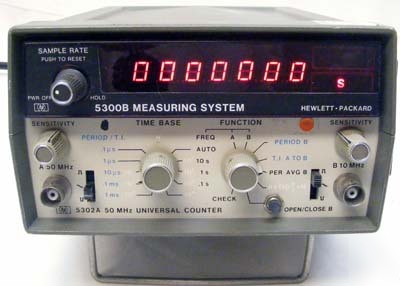

HP 5300B Measuring System HP 5302A Universal Counter
Information found online about the HP 5300B Measuring System:
The 5300B Measurement System Mainframe provides the system power, reference frequency, display, counting logic and timing control required for plug-ins (sold separately), 10 MHz output, approximately 1 Vrms at rear panel BNC, 100-ohms source impedance
Equipment Profile Brand Agilent / HP Model 5300B Description Counter Display Category Frequency Counters Specifications: Output 10MHz Approximately 10Vrms at rear panel BNC Source Impedance 100ohms
Information found online about the HP 5302A Universal Counter:
This unit is designed for use in the 5300 Mainframe.
* Channel A counter range is 10Hz to 50MHz.
* Channel B counter range is 10Hz to 10MHz.
* Sensitivity (min): 25mV rms sine wave 50Hz to 1MHz, 50mV rms sine wave 10Hz to 10MHz, 100mV rms sine wave at 50MHz, 150mV p-p pulse at minimum pulse width, 50ns.
* Measures period, period average, time interval, ratio, and open/close (totalizing)
Equipment Profile Brand Agilent / HP Model 5302A Description Universal Counter Module Category Frequency Counters Specifications: Two input channels Channel A counter range is 10Hz to 50MHz. Channel B counter range is 10Hz to 10MHz. Sensitivity (min) 25mV rms sine wave 50Hz to 1MHz, 50mV rms sine wave 10Hz to 10MHz, 100mV rms sine wave at 50MHz, 150mV p-p pulse at minimum pulse width, 50ns. Measures period, period average, time interval, ratio, and open/close (totalizing)
