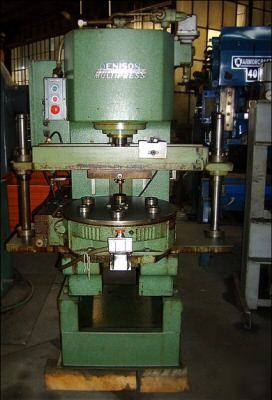

Denison 12 ton multi-press hydraulic gap frame press
DENISON 12 TON MULTI-PRESS HYDRAULIC GAP FRAME PRESS
BED AREA: 22" L R X 18" F B W/6" U SLOT
DAYLIGHT OPENING (TOTAL): 18" MAXIMUM
RAM DIAMETER: 4"/2.75" @ 1910 PSI 12 TONS
10 HP 1760 RPM, 208/220/440/3/60 VOLTS, 3 PHASE
SPEEDS APPROX.: 455"/MIN. CLOSING
175"/MIN. PRESSING TO 12 TONS 405"/MIN. RETURN
PUSHBUTTON OPERATION W/STROKE &
APPROX. 34" L R X 44" F B X 78" H
DIAL FEED INDEXING TABLE MODEL IT106R
WILL INDEX TO NEXT POSITION AFTER EACH STROKE
THE INDEXING TABLE CAN BE REMOVED IF NOT NEEDED!
