Tektronix CSA907A error detector, 1-700 mhz

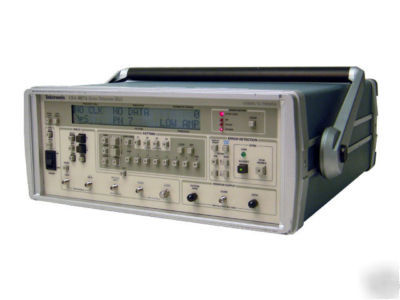

TekTronix CSA907A Error Detector, 1-700 MHz
This Tektronix CSA907A Error Detector is one of our used models with the following features:

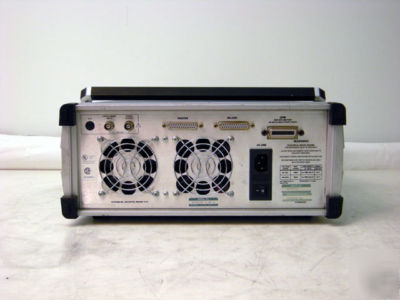

* GPIB and RS-232-C Remote Control
* Internal PLL Synthesized Clock Source
* Operating Frequency up to 700 MHz
* TTL, ECL and PECL I/O Compatible
* Internal Clock Source: 150 Kb/s to 700 Mb/s
* External Clock: 150 Kb/s to 700 Mb/s
Freq. Resolution (Internal Clock): 1 kHz
Clock Output Amplitude: 500 mV to 2.0 Vp-p
Clock Output Offset: -2.0 V to 1.8 V
Data Output Amplitude: 500 mV to 2.0 Vp-p
Data Output Offset: -2.0 V to 1.8 V
PRBS Patterns (2n -1): 7, 15, 17, 20, 23
Frequency Range with Burst Mode: 150 Kb/s to 700 Mb/s
Clock Input Levels (max): 500 mV to 6.0 Vp-p
Clock Input Terminations: GND, -2 V, +3 V or floating
Clock Input Threshold: 3.00 to +4.5 V
Data Input Levels (max): 500 mV to 6.0 Vp-p
Data Input Threshold: 3.00 to +4.5 V
Data Input Terminations: GND, -2 V, +3 V or floating
