> Pic 16F57 PIC16F57 i/p 8-bit cmos 20MHZ 2K dil 28

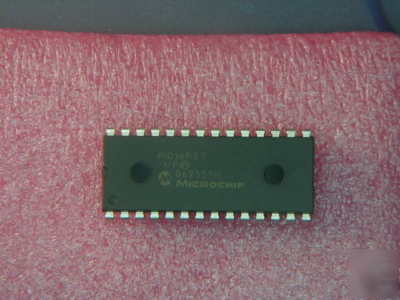

Pic 16F57 PIC16F57 i/p 8-bit cmos 20MHZ 2K dil 28
All instructions are single cycle except for program branches which are two-cycle
Two-level deep hardware stack
- DC 200 ns instruction cycle time
On-chip Flash program memory:
General Purpose Registers (SRAM):
Selectable oscillator options:
- XT: Standard crystal/resonator
- HS: High-speed crystal/resonator
- LP: Power-saving, low-frequency crystal
- Individual direction control
Wide operating voltage range:
