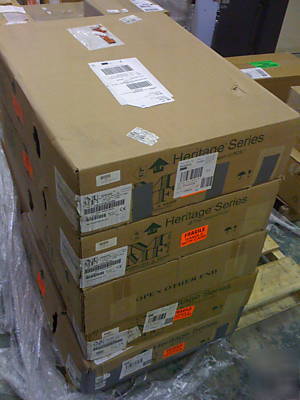

New mmf cash drawer parallel interface 225-2230PL-04
Product Name: Manufacturer : MMF CASH DRAWER
Description : MMF PARL'L PASS THRU CASH DR 18.81X19.69 BLACK Requires: 2 CABLES [225-2230pl-04]
Condition : Brand New With Original Manufacturer Warranty.
Description : ECD 232PL Cash Drawer (Parallel Interface - Optional Cable - Dimensions: 18.81 Inch W x 19.75 Inch D x 3.87 Inch H) - Color: Black The ECD 232PL Cash Drawer contains a parallel interface board which permits the user to connect the drawer in addition to a printer to a single parallel port. The interface board allows the cash drawer to open upon receipt of one opening character code which is user selectable by means of 8 switches in a DIP style switch pack. An On switch position represents a binary 1 and an Off switch position represents a binary 0 in the character code. Switch -1 will be the least significant bit and switch -8 will be the most significant bit. Connection between computer and cash drawer is with a standard parallel printer cable - connection between drawer and printer is made with 36-Pin Female Centronics cable mounted horizontally to circuit board. Having the connectors on the interface board reduces cable complexity. This arrangement provides universal capability with any working computer to printer scheme.
Manufacturer : MMF CASH DRAWER
