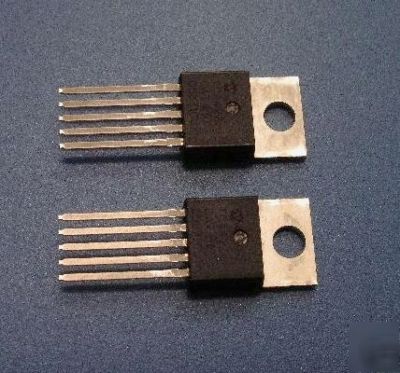

UC3710 6A hi speed mosfet driver, turns fet full on (X4
6 Amp Gate Driver for power MOSFETs
Does one thing, and does it very well: Turn MOSFETS hard ON, to attain their lowest specified Rds(on). (good luck attaining it otherwise).
Supply of 4.7 to 18V, 1.0 Amp continuous output current. 6A peak source/sink current into capacitive loads.
85 ns into 30,000 pF capacitive load
20 ns into 2200pF capacitive load.
The UC3710 has BOTH INVERTING and NON-INVERTING inputs.
