Led traffic signal 12-inch red arrow ta-12R-5

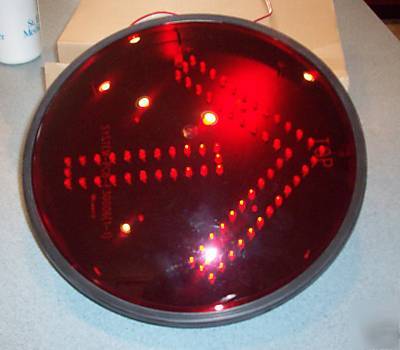

12 inch LED Traffic Signal - Red Arrow Signal
Part # TA-12R-5 (Commercial version)
Nominal Applied Voltage - 120 VAC / 60 Hz
Operating Voltage Range - 85 ~ 130 VAC / 60HZ~3HZ
Nominal Power Consumption (Watts) - 5.0
Dominant Wavelength (nm) - 626
Minimum On-Axis Luminous Intensity - 5,500 cd/m2
Intensity Loss Due to a Single LED Failure - <2% for the First LED Failure
Total Harmonic Distortion (THD) - < 20%
Meets NEMA standards for Type 4 enclosures

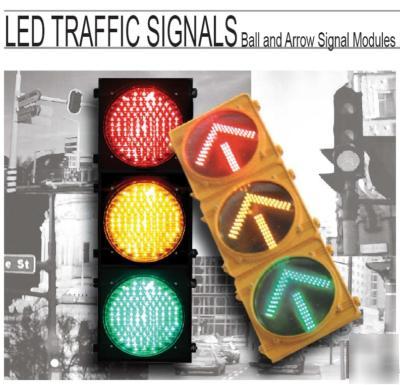

The LED alternative for traffic control systems is the wave of the future due to its high reliability and extremely low energy and maintenance costs when compared to traditional incandescent signals. The LED traffic signal modules are replacements to be retrofitted into existing signal lamps and require no special tools for installation. The module will fit into traffic signal housings built to the VTCSH standard without any modification to the housing.
