Belden 18AWG shielded audio control cable 82418 1000FT
Sealed Belden 82418 Shielded Plenum Audio ,Cable and instrumentation Cable 1000Ft

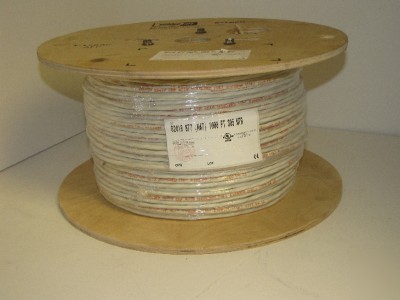

Cable is brand new , sealed .Please see pictures.
Description: 18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil shield (100% coverage), 20 AWG stranded TC drain wire, natural Flamarrest jacket.
Physical Characteristics (Overall)
AWG:# Conductors AWG Stranding Conductor Material 4 18 19x30 TC - Tinned Copper
Insulation Material Wall Thickness (in.)
FEP - Fluorinated Ethylene Propylene .007
Outer Shield Trade Name Type Outer Shield Material Coverage (%)
Beldfoil Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
AWG Stranding Drain Wire Conductor Material
Outer Jacket Trade Name Outer Jacket Material Nom. Wall Thickness (in.)
Flamarrest LS PVC - Low Smoke Polyvinyl Chloride .014
Overall Nominal Diameter: 0.172 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: -20 C To +75 C
Bulk Cable Weight: 37.800 lbs/1000 ft.
Max. Recommended Pulling Tension: 114 lbs.
Min. Bend Radius (Install)/Minor Axis: 1.800 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
Detailed Specifications & Technical Data
82418 Multi-Conductor - Audio, Control and Instrumentation Cable
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Electrical Characteristics (Overall)
Nom. Capacitance Conductor to Conductor:
Nom. Capacitance Cond. to Other Conductor & Shield:
Nominal Outer Shield DC Resistance:
4.3 Amps per conductors @ 25 C
82418 877U1000 1,000 FT 35.000 LB NATURAL 4C#18 FEP FLMRST
82418 8771000 1,000 FT 37.000 LB NATURAL C 4C#18 FS FEP FLMRST
Link to detailed specs: http:// /file/prod/en/pdf/nqf82418.pdf?PHPSESSID=8d5c8dfc1ac709265d1b65f0fd3da194
