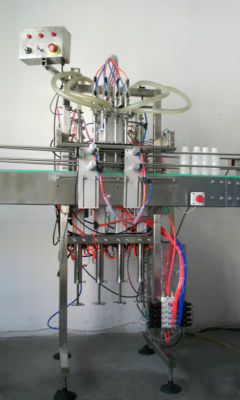

4 head auto piston filler filling machine with conveyer
Please the above video for the machine working. This is a brand-new piston 4 head inline Automatic volumetric filler ,which is proper for filling light liquid and cream products, easy to use, easy to clean up, effective filling and the price is affordable.
* All parts connecting with products made of stainless steel which meet the food and sanitary grade standard.
* Tool free to strip-down and assembly easily for washing-down
* Pneumatic, electrical operation
* Easy adjusting the filling volume control when you start to filling. You can screw in or out the handle stem of volume assembly in order to confirm the filling amount what you have selected prior. The filling volume will be controlled by handle stem without tools and no need to exchange any parts if you need change the filling volume.
* Cylinder size:72mm bore diameter 150mm stroke length ,stroke stop adjustable from 10 to 150mm;
* Air cylinder size: 50mm 150mm;
* Adjust Dispensing volumes: 50ml-610ml/one dose;
* Filling Speeds: Up to 1800 b.p.h.;
* Nozzle outer diameter size: 14mm
* filling style: Dive filling (dive deepth:200mm) or fixing filling
* Contact manufacturer or our tech support Mr. John via ****@hotmail.com or ****@yahoo.com if you have any tech and quality question;
* US $ 1500.00 fee is charged for all RMA return;
* Item must be returned within: 7 Days;
We can offer with customize filling volumes and varies filling machines according to your requirements, if you need please contact us at ****@hotmail.com or ****@yahoo.com
